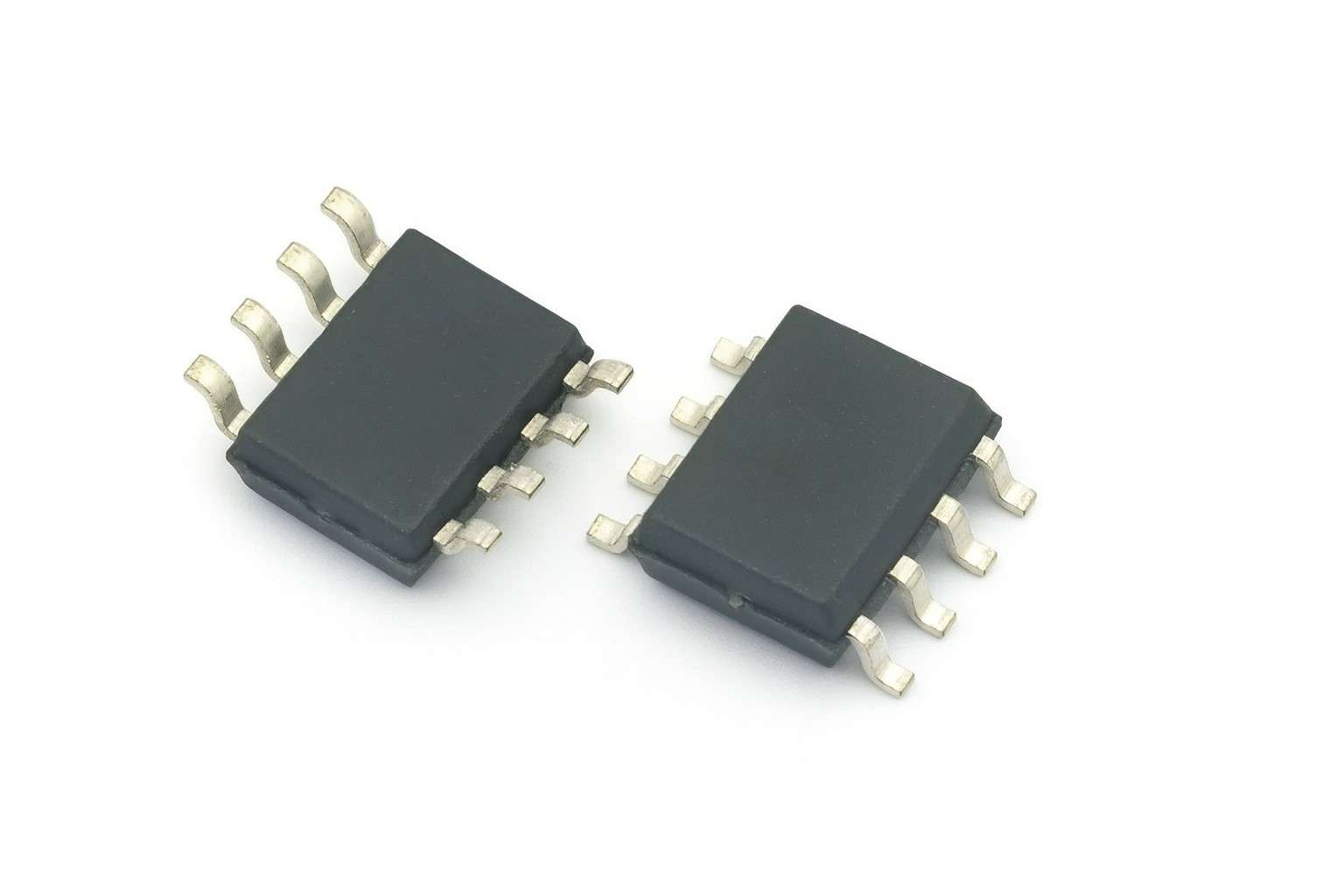

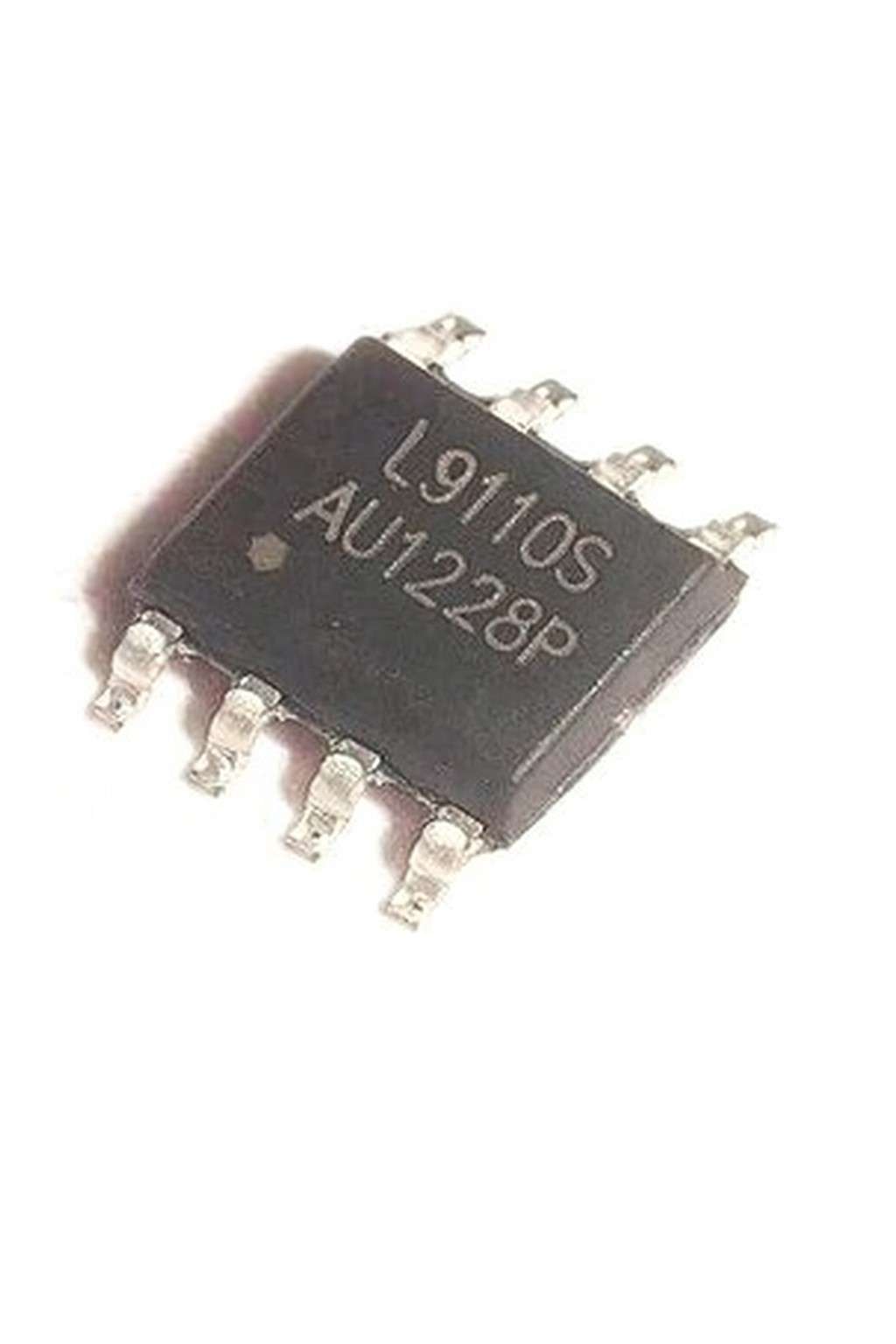

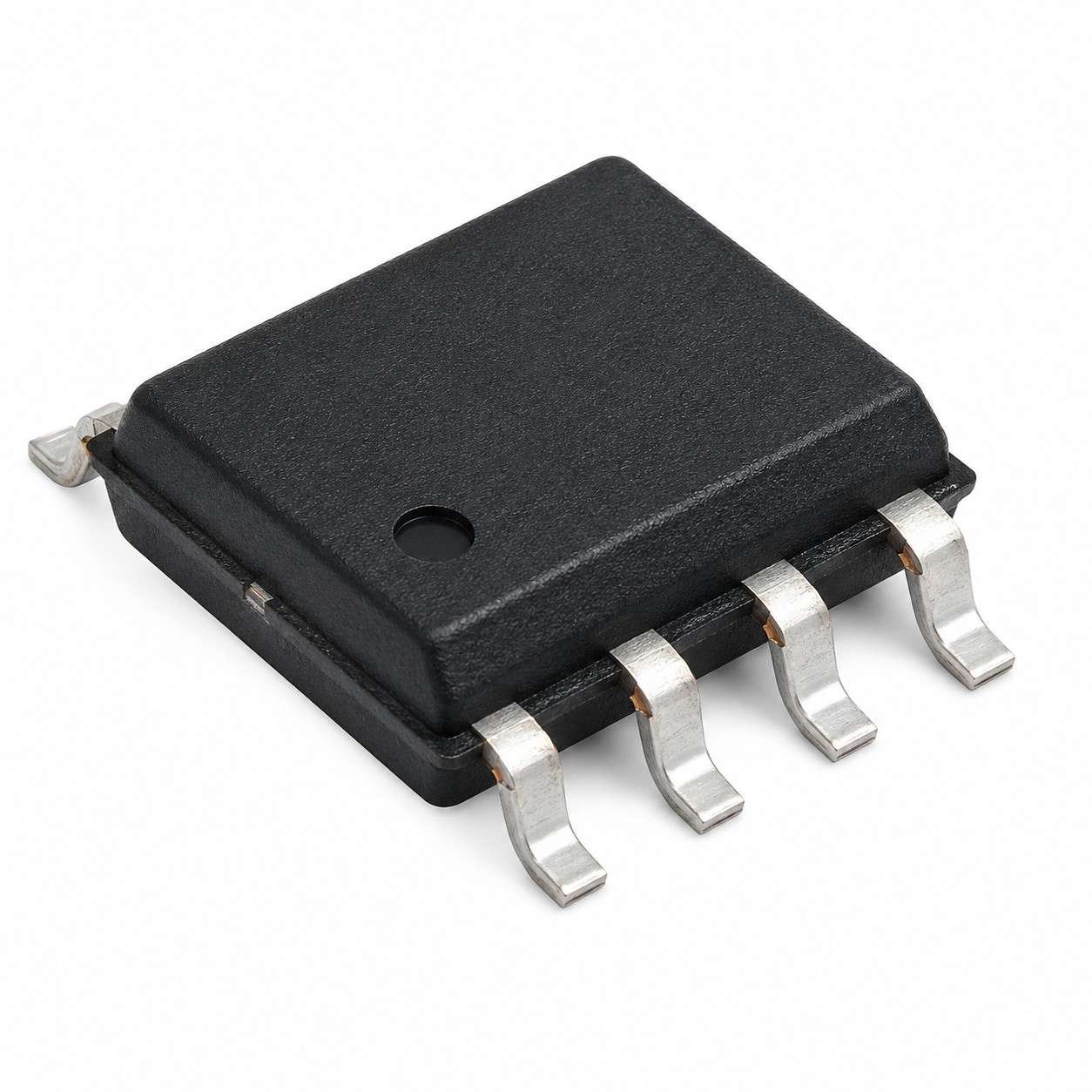

L9110S Motor Control Chip Driver Module – Dual H-Bridge DC & Stepper Motor Driver
The L9110S Motor Control Chip Driver Module is a compact dual H-Bridge motor driver designed for controlling small DC motors and stepper motors in robotics, automation, and embedded electronics projects. Built around the reliable L9110S integrated circuit, this module delivers efficient bidirectional motor control with low power consumption and minimal heat generation, making it an excellent choice for Arduino, Raspberry Pi, ESP32, and other microcontroller-based applications.
Featuring two independent H-Bridge channels, the L9110S Motor Control Chip can drive two DC motors independently or one 4-wire stepper motor with smooth and stable performance. Its TTL/CMOS compatible inputs, compact PCB design, and simple wiring make it ideal for DIY robotics, RC vehicles, smart automation systems, educational projects, and embedded motor control applications.
🔧 Key Features
- Dual-channel H-Bridge motor driver for bidirectional motor control
- Drives two DC motors or one 4-wire stepper motor
- Based on the efficient L9110S motor control IC with low heat generation
- TTL/CMOS logic compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers
- Compact PCB design for space-saving embedded applications
- Easy interfacing and reliable performance for robotics and automation projects
📐 Technical Specifications
| Product Name | L9110S Motor Control Chip Driver Module |
| Keyword | L9110S Motor Control Chip |
| Chipset | L9110S |
| Working Voltage | 2.5V – 12V DC |
| Continuous Output Current | 800mA per Channel |
| Peak Output Current | Up to 1.5A (Short Duration) |
| Number of Channels | 2 Independent H-Bridge Drivers |
| Logic Compatibility | TTL / CMOS |
| Supported Motors | 2 × DC Motors or 1 × 4-Wire Stepper Motor |
| Control Interface | IN1, IN2, IN3, IN4 |
| Output Terminals | A-OUT1, A-OUT2, B-OUT1, B-OUT2 |
| Operating Temperature | 0°C to 80°C |
| Weight | Approx. 5g |
| RoHS Compliant | Yes |
📌 Applications
- DIY robotics and intelligent robotic vehicles
- Arduino, ESP32, STM32, and Raspberry Pi motor control projects
- RC cars, tanks, and motorized toys
- Automatic doors, curtains, conveyors, and automation systems
- Embedded DC motor and stepper motor control applications
💡 Why Choose This L9110S Motor Control Chip?
The L9110S Motor Control Chip Driver Module provides a compact, efficient, and economical solution for bidirectional motor control. With dual H-Bridge outputs, low power dissipation, and excellent compatibility with popular development boards, it is ideal for hobbyists, students, educators, and engineers building robotics, automation, and embedded control systems.
📦 Package Includes
- 1 × L9110S Motor Control Chip Driver Module
