Introduction

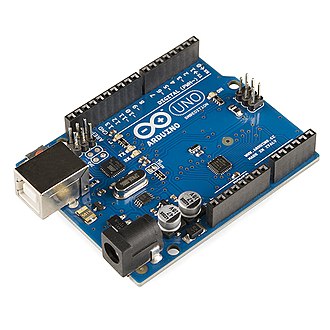

The Arduino Uno is a microcontroller board that is based on the ATmega328P microcontroller. It is an open-source platform, meaning that the hardware and software design is freely available for anyone to use and modify. This has led to a large and active community of users who share their projects and knowledge, making it an easy and accessible platform for beginners and experts alike.
The Arduino Uno has a variety of input and output (I/O) pins that can be used to interface with a wide range of sensors and actuators. It includes 14 digital I/O pins, 6 of which can be used as PWM outputs, and 6 analog inputs. These I/O pins allow users to connect easily and control a variety of electronic components, such as LEDs, motors, and sensors. The board also includes a USB connector, which can be used to connect the board to a computer for programming and power.
How to Program your Arduino UNO
The Arduino Uno can be programmed using the Arduino Software (IDE), which is free, open-source software that runs on Windows, macOS, and Linux. The software provides an easy-to-use interface for writing, uploading, and debugging code. The Arduino language is based on C++ and is designed to be easy to learn for beginners. It also includes a large number of built-in libraries for common functions such as digital and analog input/output, communication protocols, and more.
Programming your Arduino Uno involves the following steps: –
- Install the Arduino Software (IDE) on your computer. The Arduino IDE is free, open-source software that runs on Windows, macOS, and Linux.
- Connect your Arduino Uno to your computer using a USB cable.
- Open the Arduino IDE and select the correct board and port in the “Tools” menu.
- Write your code in the Arduino IDE, using the Arduino programming language, which is based on C++. The Arduino IDE also includes a number of built-in libraries for common functions, such as digital and analog input/output, communication protocols, and more.
- Verify your code by clicking on the “Verify” button. This will check for any errors in your code before uploading it to the Arduino Uno.
- Upload your code to the Arduino Uno by clicking on the “Upload” button.
- Once the code is uploaded, the Arduino Uno will execute the code and perform the desired functions.
- Use the serial monitor in the Arduino IDE to send and receive data between the Arduino Uno and a computer, or a serial terminal application.
It’s important to note that the Arduino Uno runs on the firmware that is stored in the microcontroller, and uploading a new sketch will overwrite the previous one. Also, make sure to keep the circuit connections in mind before uploading a code.
The Arduino Uno offers a number of advantages, including –
Advantage of Arduino UNO
- Open-source: The Arduino Uno is an open-source platform, which means that the hardware and software design is freely available for anyone to use and modify. This has led to a large and active community of users who share their projects and knowledge, making it an easy and accessible platform for beginners and experts alike.
- Versatility: The Arduino Uno has a variety of input and output (I/O) pins that can be used to interface with a wide range of sensors and actuators. This allows users to connect easily and control a variety of electronic components, such as LEDs, motors, and sensors.
- Easy to use: The Arduino Uno can be programmed using the Arduino Software (IDE), which is free, open-source software that runs on Windows, macOS, and Linux. The software provides an easy-to-use interface for writing, uploading, and debugging code. The Arduino language is based on C++ and is designed to be easy to learn for beginners.
- Wide availability and low cost: The Arduino Uno can be easily purchased online or from electronics retailers, and it is relatively inexpensive. This makes it an ideal platform for students, hobbyists, and makers just starting out with electronics and microcontroller programming.
- Community support: The large and active community of Arduino users provides a wealth of resources and support for beginners and experts alike. This includes tutorials, sample code, and forums for troubleshooting and sharing projects.
- Wide range of applications: The Arduino Uno can be used in a wide range of applications, from simple LED blinkers to complex robots and IoT projects. The versatility and flexibility of the platform, coupled with its ease of use, make it a popular choice among hobbyists, educators, and professionals.
- Shield compatibility: The Arduino Uno is also compatible with a wide range of shields, which are additional boards that can be connected to the Arduino Uno to add new functionality.
Types of Arduino UNO
There are a few different types of Arduino Uno boards available, including: –
- Original Arduino Uno: The original Arduino Uno board is based on the ATmega328P microcontroller and has 14 digital I/O pins, 6 analog inputs, and a 16 MHz clock speed.
- Arduino Uno SMD: This version of the Arduino Uno board is similar to the original version but uses surface-mount technology for the components, making it slightly smaller in size.
- Arduino Uno WiFi: This version of the Arduino Uno includes built-in WiFi capabilities and is based on the ATmega328P microcontroller.
- Arduino Uno WiFi Rev2: This is an updated version of the Uno WiFi, it includes a built-in ESP32 module and additional memory and processing power.
- Arduino Uno R3: This version of the Arduino Uno is similar to the original version but has a few changes such as a different USB-to-Serial converter IC and a few additional connectors.
- Arduino Uno R3 SMD: This version of the Arduino Uno R3 is similar to the R3 version but uses surface-mount technology for the components, making it smaller in size.
- Arduino Uno Ethernet: This version of the Arduino Uno includes built-in Ethernet capabilities and is based on the ATmega328P microcontroller.
These are the most popular types of Arduino Uno, but there are other types of Uno boards available.
Summary
To sum up, the Arduino Uno is a powerful, versatile, and user-friendly microcontroller board that has become a popular tool among hobbyists, educators, and professionals. The board’s wide range of input and output pins, as well as its compatibility with various sensors and actuators, make it a versatile tool that can be used in a wide range of applications. The open-source nature of the platform, its wide availability and low cost, and its easy-to-use programming interface, make it an ideal platform for beginners and experts alike.
