MXD1230 6mm 650nm 5mW Red Line Laser Module

₹210.00 (Excl. GST 18%)

Availability: In stock

Laser Output Type: Red LINE Laser
Weight: 15 gm.
Wavelength: 650nm
Voltage: 3~6V
Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW

Guaranteed Safe Checkout

SKU: SHOKITECH-RE-P-0669 Categories: Miscellaneous, Sensors and Modules Tags: MXD1230, Red Line Laser Module

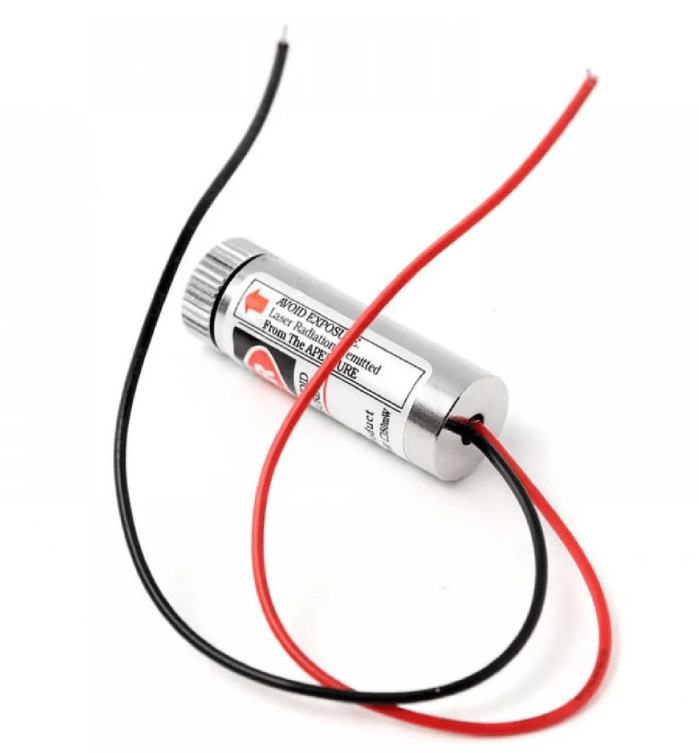

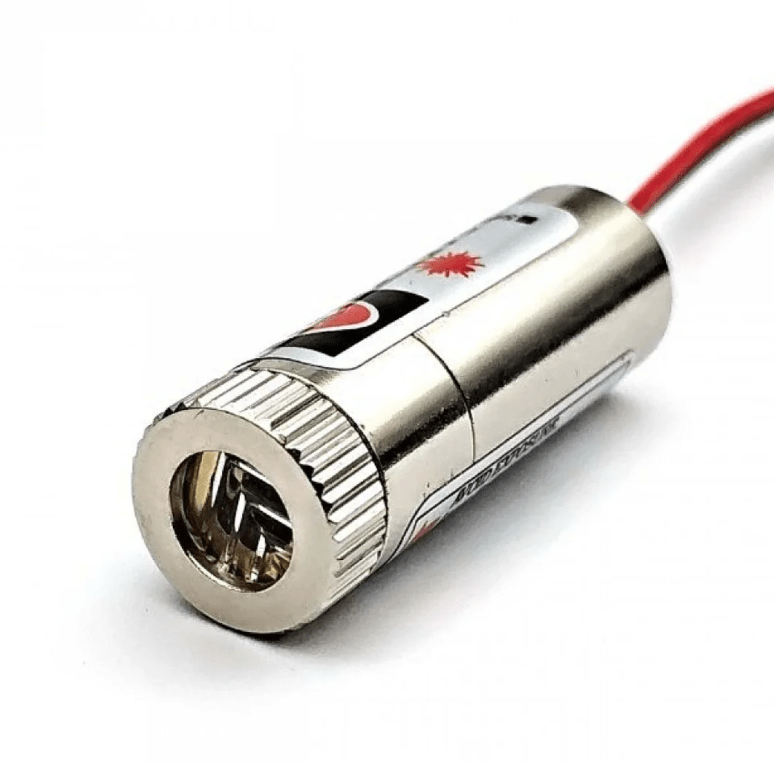

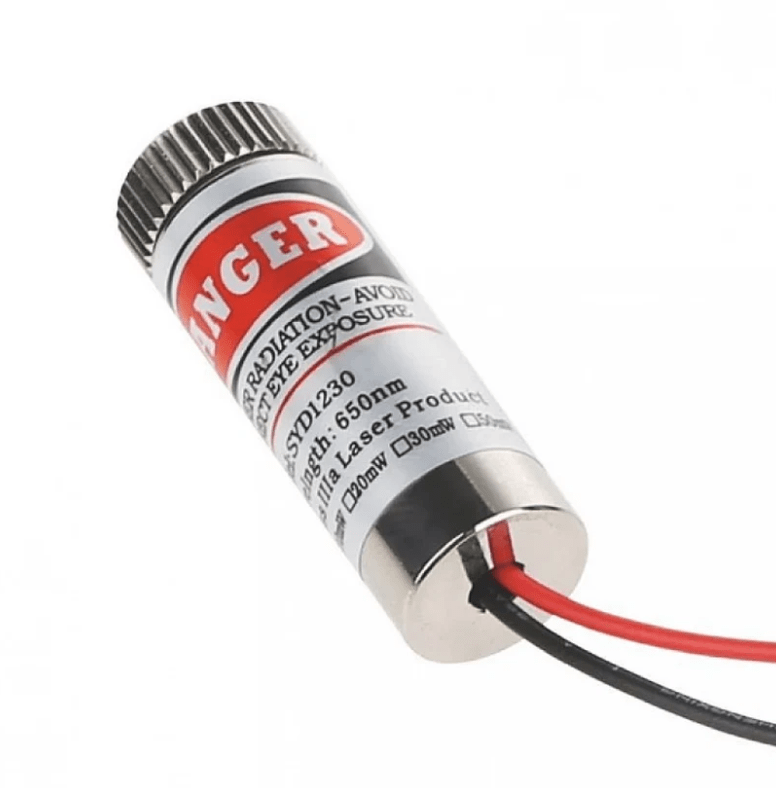

This is MXD1230 650nm 5mW Red Line Laser Module with the adjustable focus point. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.. It can be used to connect diode tubes for multiple uses.

This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.

Weight	0.005 kg
Dimensions	0.6 × 2 cm
SKU/Model Number	MXD1230
Category Type	Laser Module
Material	Metal
Color	Red
Input Voltage (V)	5V
Output Voltage (V)	N/A
Current Rating (A)	0.03A
Power Rating (W)	0.15W
Frequency (MHz/GHz)	N/A
Communication Protocol	N/A
Interface Type	Wire leads
Number of Pins	2 pins
Special Features	650nm red laser line projection
Compatible Boards	Arduino, Raspberry Pi
Compatible Voltage Range	5V
Use Case	Laser projection in alignment projects
