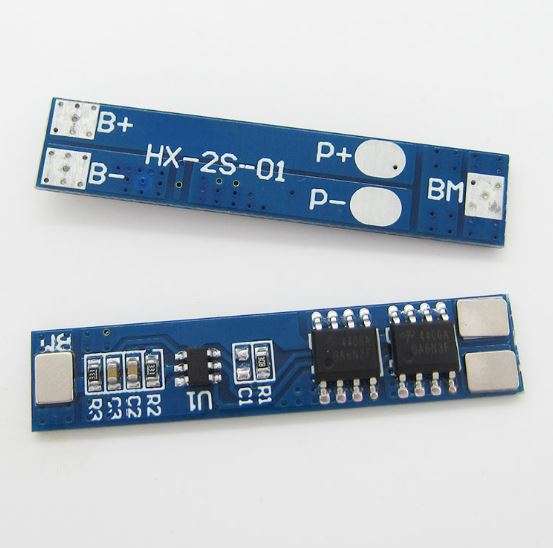

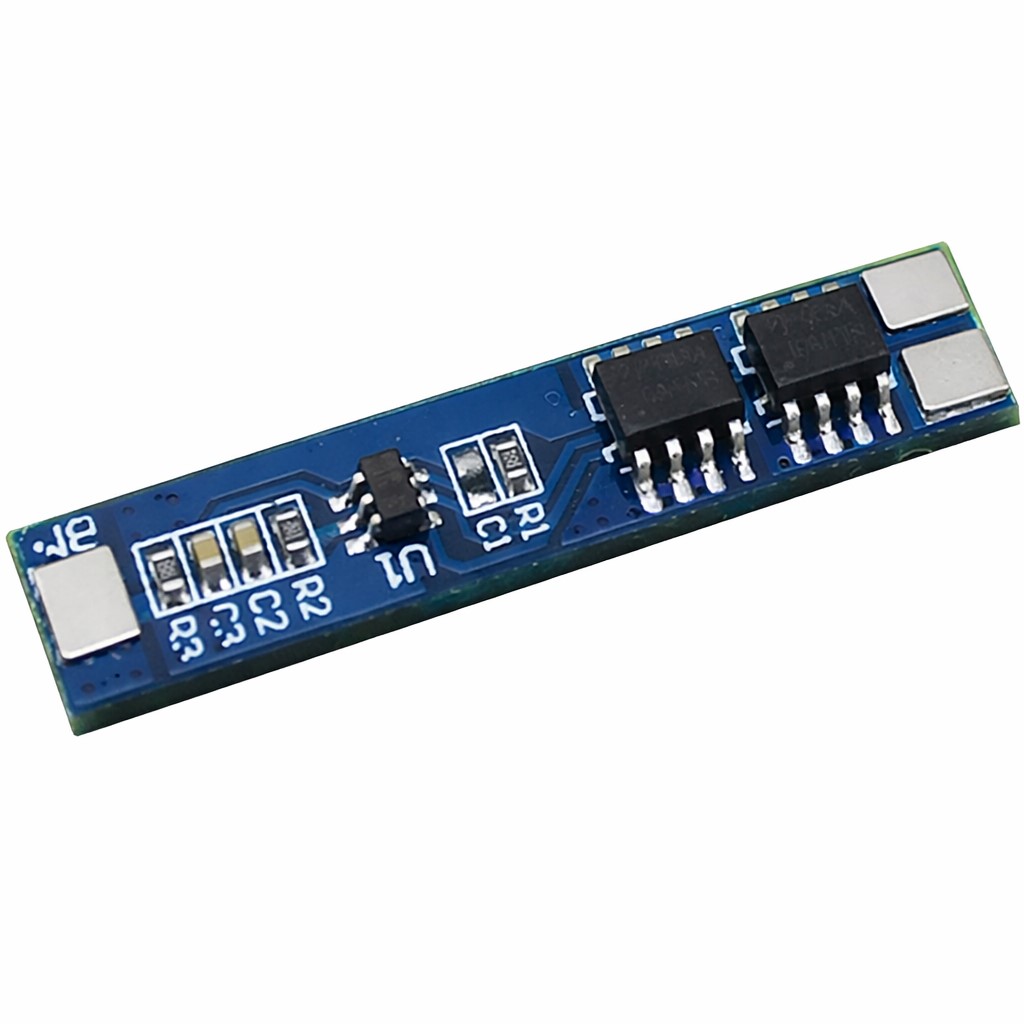

2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module

69.20 (Excl. GST 18%)

Availability: In stock

Buy Now
  • Type: 2S 5A 8.4V Battery BMS
  • Protection: Overcharge, discharge, short circuit
  • Max Current: 5A, Peak 7A
  • Operating Temp: -40°C to 50°C
  • For: 2 x 3.7V 18650 lithium cells

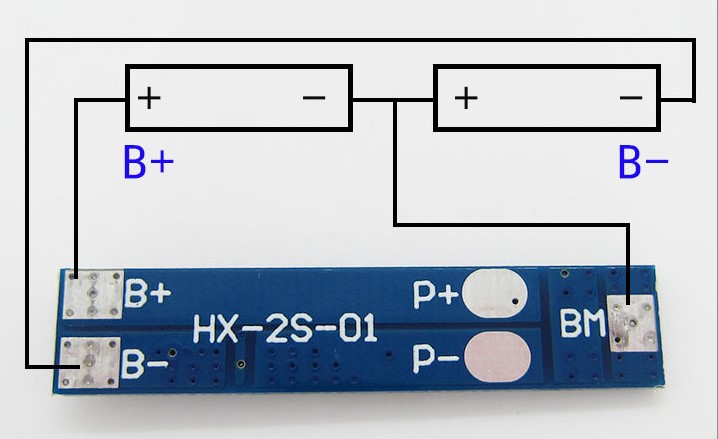

  • Interface: B+, B-, P+, P-, MB points
Guaranteed Safe Checkout

The 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module is a compact, high-performance Battery Management System (BMS) specifically designed for 2S (2-cell) lithium-ion battery packs. With advanced protection circuitry and premium-quality components, this module ensures safe charging and discharging of your 18650 batteries while preventing damage due to over-voltage, under-voltage, short circuit, or over-current conditions.

Engineered using original Japanese ICs and high-quality MOSFETs (VISHAY, AOS, IR), the board is built on a low-temperature-coefficient FR-4 PCB for high stability and performance. Ideal for projects requiring high integration, compact design, and robust protection, this BMS supports applications in portable electronics, DIY battery packs, robotics, and IoT devices.

🔧 Key Features

  • Supports 2S (2 × 3.7V) lithium battery packs
  • Built-in short circuit, overcharge, over-discharge, and over-current protection
  • Integrated precision Japanese protection ICs
  • Uses high-quality MOSFETs from VISHAY, AOS, IR
  • Compact and lightweight design for embedded projects
  • Low internal resistance for efficient operation
  • Predefined connection points: B+, B-, P+, P-, MB
  • FR-4 PCB with low temperature coefficient

📐 Technical Specifications

Product Name 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module
Battery Type 2 × 3.7V 18650 Li-ion cells
Maximum Charging Voltage 8.4V
Continuous Operating Current 5A
Peak Current 7A
Protection Features Overcharge, Over-discharge, Over-current, Short Circuit
Operating Temperature -40°C to 50°C
Internal Resistance Less than 45mΩ
Board Material FR-4 PCB
Connection Points B+, B-, MB, P+, P-
Dimensions ~45mm × 16mm

📌 Applications

  • 2S lithium-ion battery packs
  • DIY power banks and portable devices
  • Battery-powered robotics and RC models
  • IoT devices and embedded systems
  • Safety-focused battery pack protection

💡 Why Choose This BMS Module?

This 2S 5A Battery Charger Board offers top-tier protection with minimal footprint, making it an excellent choice for lithium battery-powered projects. With reliable Japanese ICs and precision MOSFETs, it ensures efficient energy transfer and extended battery lifespan.

📦 Package Includes

  • 1 × 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module
Weight 0.015 kg
Dimensions 4 × 3 × 1 cm
SKU/Model Number

2S-5A-Charger

Category Type

Battery Charger & Protection

Material

PCB, Plastic

Color

Blue

Input Voltage (V)

8.4V

Output Voltage (V)

4.2V

Current Rating (A)

5A

Power Rating (W)

21W

Frequency (MHz/GHz)

N/A

Communication Protocol

N/A

Interface Type

Through-hole

Number of Pins

4 pins

Special Features

Protects 2S 18650 battery pack during charge

Compatible Boards

Lithium batteries

Compatible Voltage Range

8.4V

Use Case

Battery charging and protection
