MT3608 DC to DC Boost Converter 2A Adjustable Step-Up Module – 2V-24V to 5V-28V

MT3608 DC to DC Boost Converter is a compact and efficient adjustable step-up voltage converter designed to increase a lower DC input voltage to a higher DC output voltage. It supports a wide 2V–24V DC input and provides an adjustable 5V–28V DC output, making it suitable for DIY electronics, Arduino, ESP, IoT, robotics, battery-powered projects and prototyping.

Powered by the MT3608 boost converter IC, this MT3608 DC to DC Boost Converter module features an onboard trimmer potentiometer for convenient output voltage adjustment. With a compact 37mm × 17mm × 7mm PCB design and conversion efficiency of up to 93%, it provides a practical solution for applications where a higher DC voltage is required from a lower-voltage source.

🔧 Key Features

• DC-DC step-up (boost) voltage converter
• Wide 2V–24V DC input voltage range
• Adjustable 5V–28V DC output voltage
• Maximum output current up to 2A
• Conversion efficiency up to 93%
• Onboard trimmer potentiometer for output adjustment
• 1.2MHz high-frequency switching operation
• Compact and lightweight module design
• Clearly marked VIN and VOUT terminals
• Suitable for DIY, embedded and prototyping applications

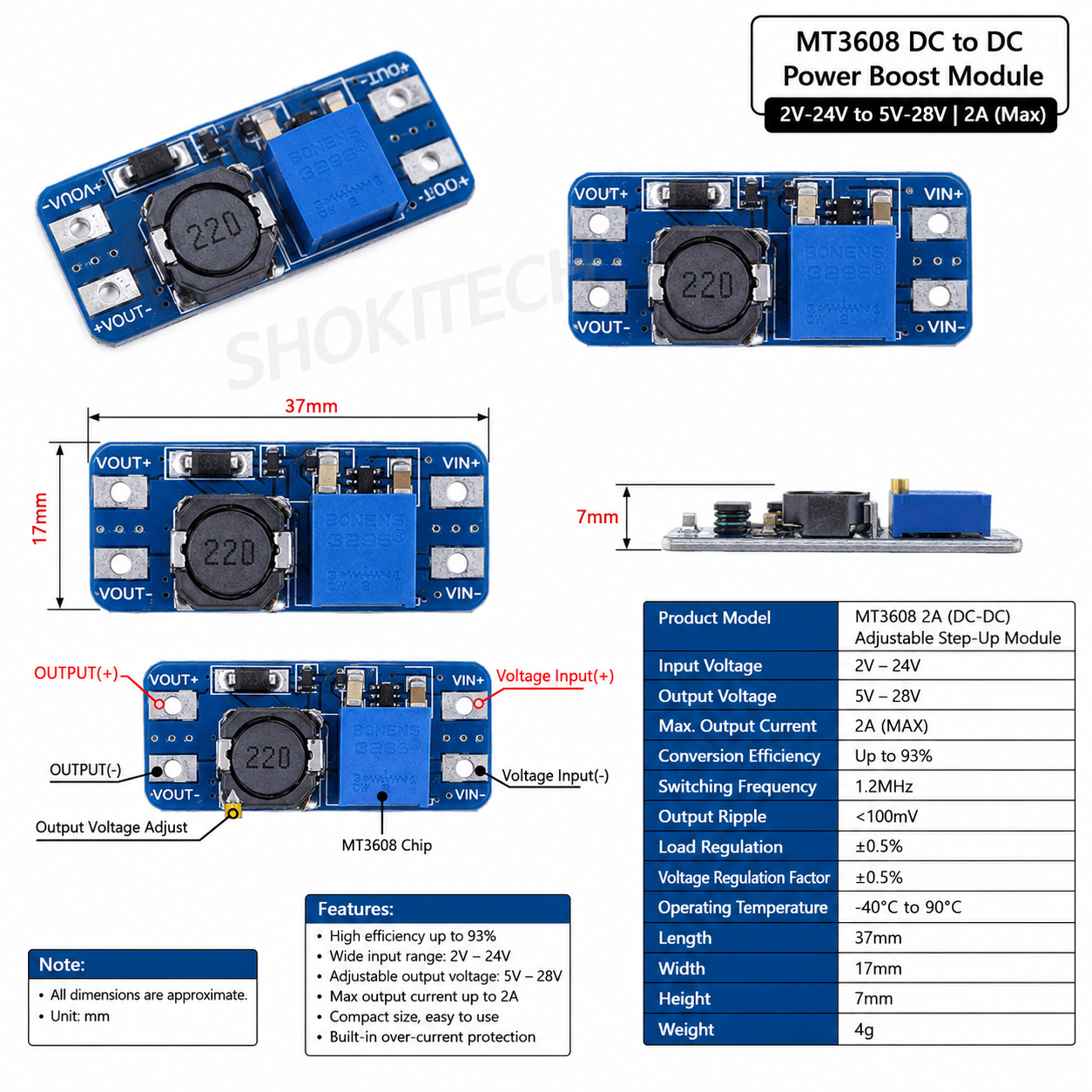

⚙️ Technical Specifications

💡 Applications

• Arduino and ESP-based projects
• IoT and embedded electronic devices
• Battery voltage boosting applications
• Portable power supply projects
• LED and lighting applications
• Robotics and automation projects
• Sensor and electronic module power supply
• DIY power supply projects
• Electronic prototyping and development

⭐ Why Choose This Product?

The MT3608 DC to DC Boost Converter combines a wide input range, adjustable output voltage, high efficiency and compact size in a convenient module. Its onboard adjustment potentiometer and clearly marked input/output terminals make it easy to integrate into DIY electronics, battery-powered systems, robotics and embedded projects.

Note: This is a step-up converter, so the output voltage must be set higher than the input voltage. The actual maximum output current depends on the input voltage, output voltage, load and thermal conditions. Always verify the output voltage with a multimeter before connecting sensitive components.

📦 Package Includes

• 1 × MT3608 DC to DC Boost Converter Module
