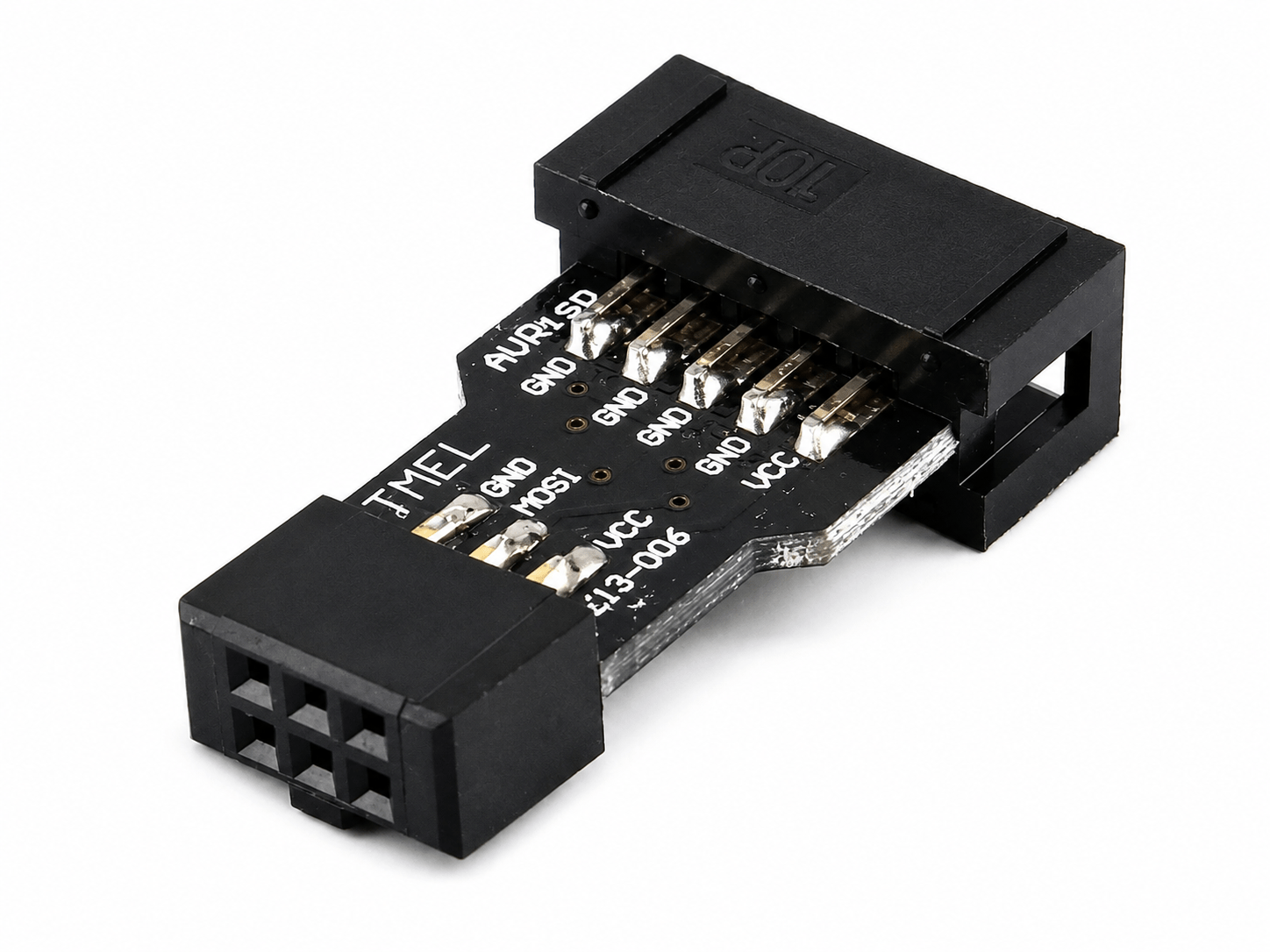

AVR ISP Adapter Board – 10 Pin to 6 Pin Converter

50.00 (Excl. GST 18%)

Availability: In stock

  • Converts 10-pin ISP to 6-pin format
  • Compatible with AVR and Arduino boards
  • Supports USBasp, STK500, USBtinyISP
  • Plug-and-play, no external power needed
  • Compact size: 25mm x 15mm x 6mm
Guaranteed Safe Checkout

The AVR ISP Adapter Board is a compact and reliable solution that converts a standard 10-pin in-system programming (ISP) header to a 6-pin format. Designed for compatibility with AVR microcontrollers and Arduino boards, this adapter simplifies programming tasks by enabling smooth connectivity between your programmer and target board. Ideal for hobbyists, makers, and embedded system developers, the AVR ISP Adapter Board offers a plug-and-play interface for AVR in-system programming.

Key Features

  • Converts standard 10-pin ISP interface to 6-pin format

  • Fully compatible with AVR microcontrollers and Arduino boards

  • Supports in-system programming using tools like USBasp, AVR ISP, and STK500

  • No external power required – draws power from the programmer

  • Compact and lightweight for easy integration in development setups

  • Excellent build quality with firm pin connections

Technical Details

  • Product Name: AVR ISP Adapter Board – 10 Pin to 6 Pin Converter

  • Input Connector: 10-pin male ISP header (2×5 pin layout)

  • Output Connector: 6-pin male ISP header (2×3 pin layout)

  • Interface Type: In-System Programming (ISP)

  • Supported Devices: AVR series microcontrollers, Arduino UNO, Nano, etc.

  • Dimensions: Approx. 25mm (L) x 15mm (W) x 6mm (H)

  • Weight: Approx. 4g

  • Operating Voltage: 5V (via programmer interface)

  • Material: High-quality PCB with gold-plated header pins

  • Operating Temperature Range: -20°C to +85°C

  • Mounting Type: Plug-in (no soldering required)

  • RoHS Compliant: Yes

Applications

  • Arduino bootloader burning

  • Firmware uploading to AVR microcontrollers

  • Embedded development and prototyping

  • Compatible with USBasp, USBtinyISP, and other AVR programmers

  • Electronics learning and development kits

Why Choose the AVR ISP Adapter Board?

The AVR ISP Adapter Board simplifies development and reduces hassle by allowing you to interface easily between a 10-pin programmer and a 6-pin target device. Whether you’re flashing bootloaders or uploading code to an AVR microcontroller, this adapter ensures solid and stable connections every time. Its small footprint and robust design make it a must-have tool for any electronics toolkit.

Package Includes

  • 1 x AVR ISP Adapter Board – 10 Pin to 6 Pin Converter

Weight 0.005 kg
Dimensions 4 × 3 × 0.5 cm
SKU/Model Number

AVR ISP Adapter

Category

Adapter Board

Material

PCB

Color

Blue

Input Voltage (V)

N/A

Output Voltage (V)

N/A

Current Rating (A)

N/A

Power Rating (W)

N/A

Frequency (MHz/GHz)

N/A

Communication Protocol

N/A

Interface Type

Through-hole

Number of Pins

10 pins

Special Features

ISP programming for AVR chips

Compatible Boards

Arduino, AVR

Compatible Voltage Range

N/A

Use Case

ISP programming for AVR microcontrollers
