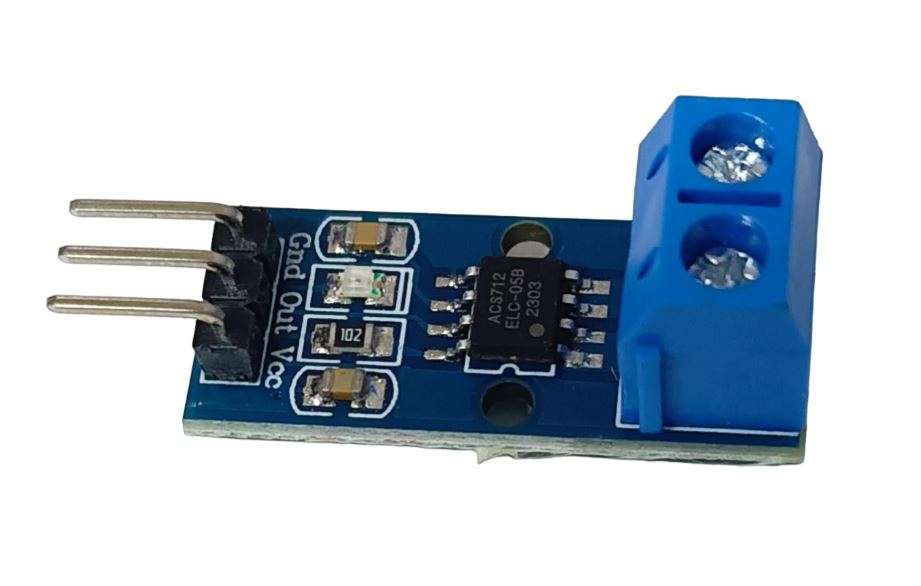

The ACS712 5A Range Current Sensor Module is an efficient and reliable solution for measuring both AC and DC currents. Designed with Hall Effect technology, it ensures precise detection and delivers an analog output that can be easily interfaced with Arduino and other microcontrollers.
Capable of measuring currents in the range of -5A to +5A, the ACS712 5A Range Current Sensor Module is widely used in applications such as battery chargers, switching mode power supplies (SMPS), and digital watt meters. Its compact PCB layout and onboard isolation provide stable and safe operation in embedded systems.
Engineered with high sensitivity of 100 mV per ampere, the ACS712 5A Range Current Sensor Module provides accurate readings for real-time current monitoring. This makes it a versatile tool for power management, robotics, and programmable current sources where precision is essential.
Whether you are working on hobby electronics or industrial projects, the ACS712 5A Range Current Sensor Module is the perfect choice for implementing reliable current measurement with minimal complexity.
🔧 Key Features
- Measures both AC and DC currents up to ±5A
- Hall Effect sensing ensures high accuracy and isolation
- Analog voltage output proportional to current
- Compact PCB module for easy integration into projects
- Stable operation with 4.5V – 5.5V supply
- Ideal for Arduino, robotics, and embedded systems
📐 Technical Specifications
| Product Name | ACS712 5A Range Current Sensor Module |
| Operating Voltage | 4.5V – 5.5V DC |
| Current Detection Range | -5A to +5A |
| Sensitivity | 100 mV/A |
| Signal Output | Analog voltage output |
| Detection Principle | Hall Effect technology |
| Module Dimensions | Approx. 31mm × 13mm |
| Electrical Isolation | Isolated measurement path for safety |
| Current Capacity | Up to ±5A |
| Recommended Uses | Arduino, SMPS, battery management, lab equipment |

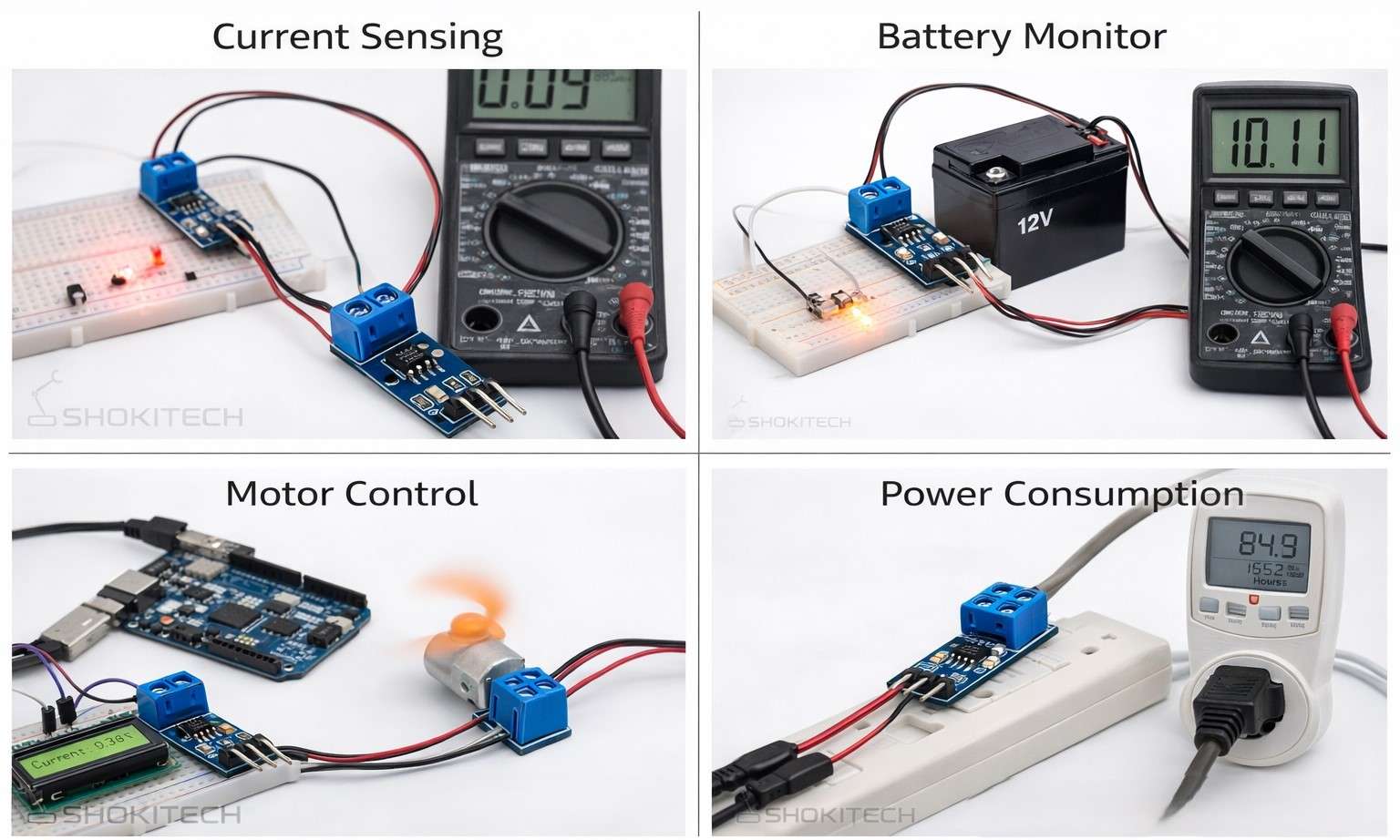

📌 Applications
- Over-current protection circuits
- Battery chargers and power supplies
- Switching mode power supplies (SMPS)
- Arduino and microcontroller-based current sensing
- Programmable current sources and lab instruments
💡 Why Choose This Product?
The ACS712 5A Range Current Sensor Module provides a compact, accurate, and reliable way to measure current in electronic systems. With its Hall Effect technology and analog output, it is an essential tool for real-time current monitoring in both DIY and professional applications.
📦 Package Includes
- 1 × ACS712 5A Range Current Sensor Module
