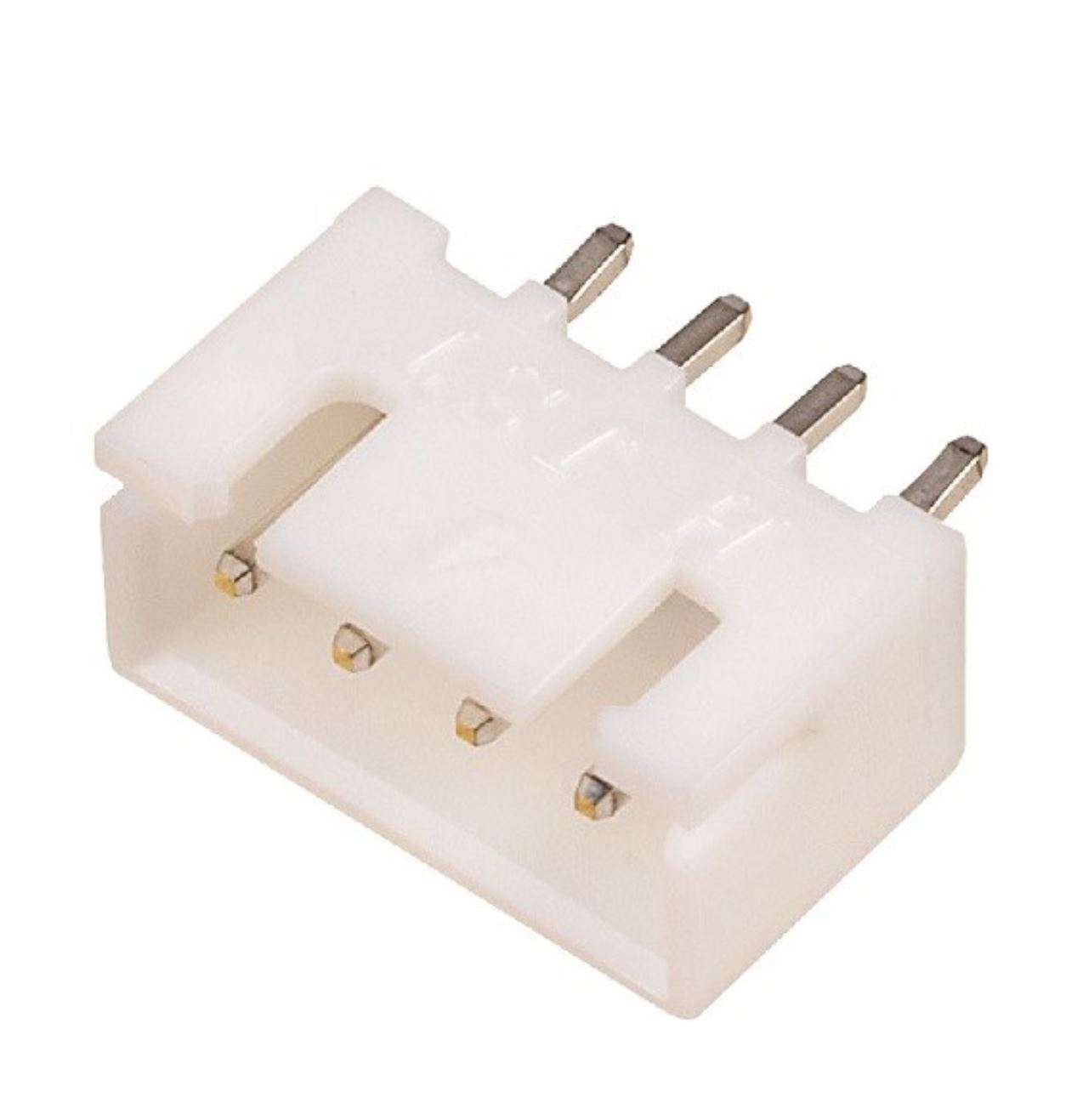

The 2.5mm XH-A 4-Pin Male Connector – Straight DIP Type is designed for clean and secure board-to-wire electrical connections. Featuring a 2.5mm pitch layout that complies with JST-XH series standards, this connector is widely used in battery packs, consumer electronics, RC models, and embedded systems.
Its straight DIP (Dual Inline Package) configuration allows for easy and direct soldering to printed circuit boards (PCBs), ensuring long-term electrical reliability. The compact body and solid pin structure make this a go-to solution for tightly packed electronics or power/signal interfacing projects.
🔧 Key Features
- Standard 2.5mm pitch compatible with JST-XH headers
- Straight DIP mount for direct PCB soldering
- 4-pin layout ideal for signal or power transfer
- Durable plastic body and corrosion-resistant pins
- Compact size suited for tight installations
- Excellent fit for battery, sensor, or motor wiring
📐 Technical Specifications
| Product Name | 2.5mm XH-A 4-Pin Male Connector – Straight DIP |
| Connector Type | XH-A Male Header |
| Pitch | 2.5mm |
| Number of Pins | 4 |
| Mount Type | Straight DIP (Through Hole) |
| Compatible With | JST-XH 2.5mm female connector |
| Material | Plastic Body with Metal Contacts |
| Operating Voltage | Up to 250V |
| Current Rating | Up to 3A |
| Temperature Range | -25°C to +85°C |
| Contact Resistance | ≤20mΩ |
📌 Applications
- Battery pack wiring
- RC electronics and robotics
- PCB-to-cable connections
- Stepper motor interfaces
- Signal or power line interfacing
💡 Why Choose This Connector?
The 2.5mm XH-A 4-Pin Male Connector is a dependable choice for compact, secure, and reliable circuit connections. It offers superior compatibility, especially with JST-XH systems, and is easy to mount and solder for long-term use.
📦 Package Includes
- 1 × 2.5mm XH-A 4-Pin Male Connector – Straight DIP
