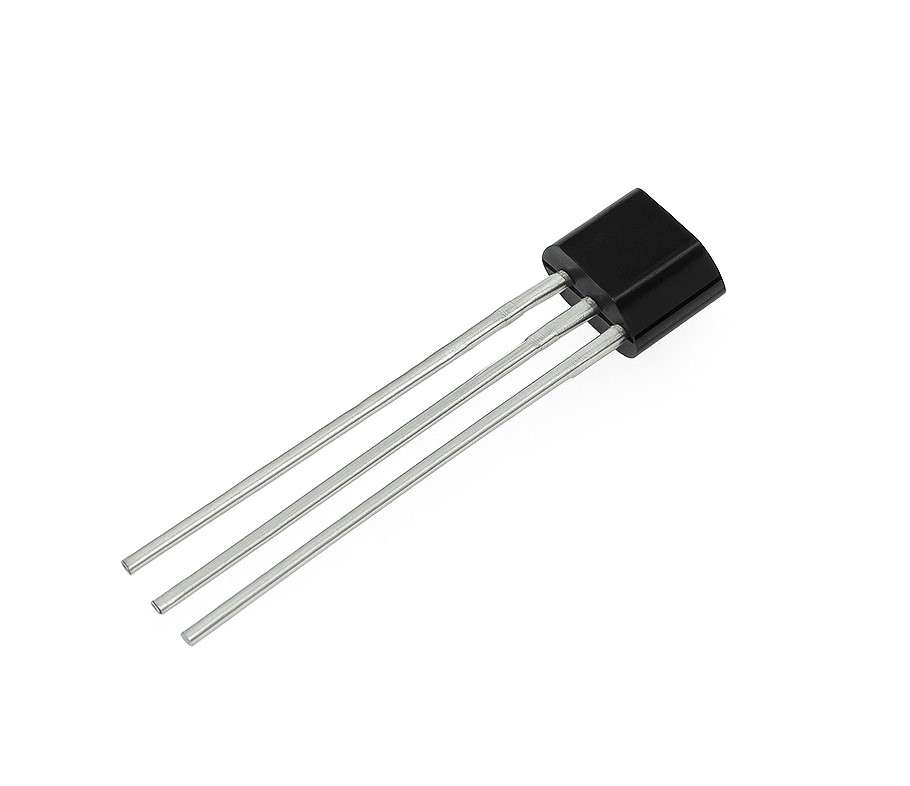

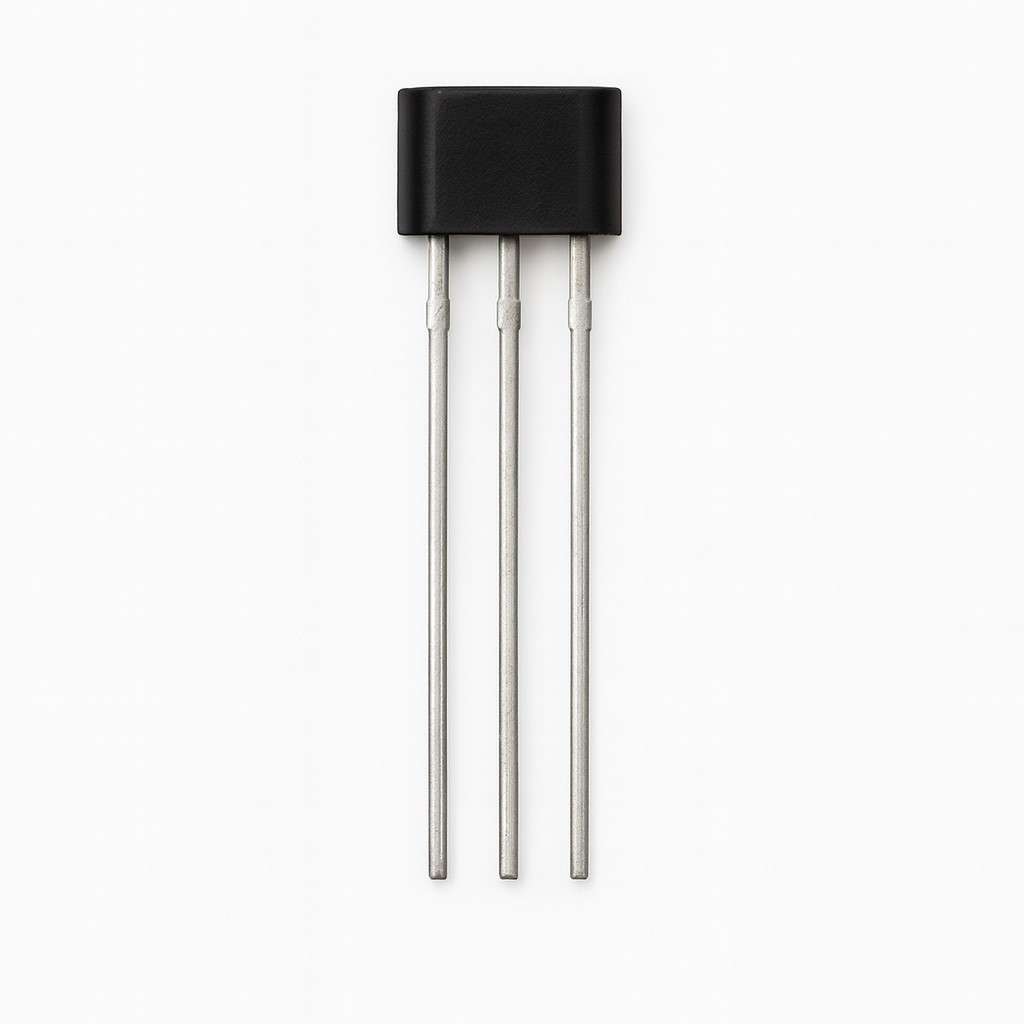

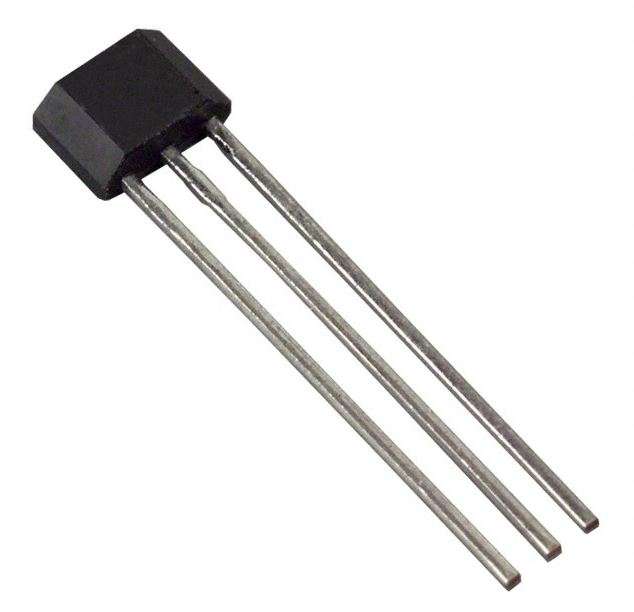

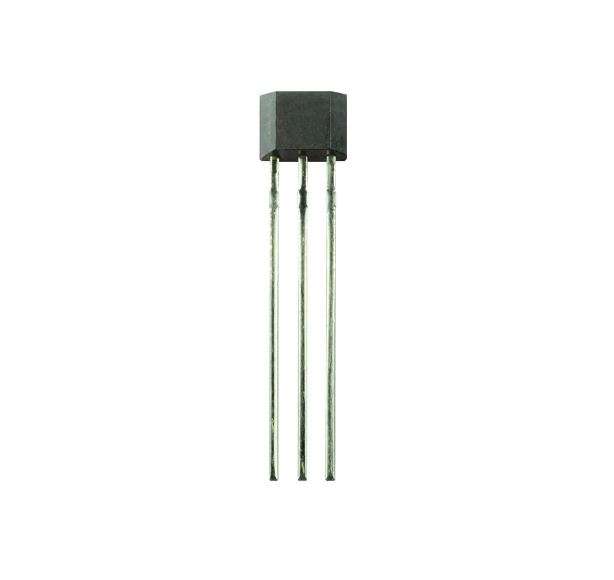

The SS49E Analog Hall Sensor is a high-sensitivity linear magnetic sensor that outputs an analog voltage directly proportional to the magnetic field strength and polarity. Designed for applications requiring contactless detection, this sensor is ideal for position, angle, proximity, and non-contact current measurement projects.
It supports both North and South magnetic polarities (bipolar sensing) and delivers a stable, low-noise voltage output ranging from ~0.5V to 4.5V. With compatibility for 3.3V and 5V systems, the SS49E sensor integrates easily with microcontrollers like Arduino, STM32, and Raspberry Pi. Its compact TO-92S package and fast response time make it perfect for real-time applications in robotics, automation, and educational kits.
🔧 Key Features
- Linear analog voltage output based on magnetic field strength
- High sensitivity and bipolar detection (North and South poles)
- Compatible with both 3.3V and 5V logic systems
- Low power consumption and low noise output
- Fast response time under 3 microseconds
- Compact TO-92S package suitable for breadboards and PCBs
📐 Technical Specifications
| Product Name | SS49E Analog Hall Sensor |
| Sensor Type | Linear Hall Effect Sensor |
| Model | SS49E (Honeywell or Equivalent) |
| Operating Voltage | 2.7V – 6.5V DC |
| Output Type | Analog Voltage |
| Output Voltage Range | ~0.5V to 4.5V (ratiometric) |
| Sensitivity | ~1.4 mV/G (typical) |
| Magnetic Polarity | Bipolar (North & South detection) |
| Response Time | Less than 3 µs |
| Operating Temperature | -40°C to +125°C |
| Mounting Style | Through-hole / PCB mount |
| Package Type | TO-92S |
| Use Case | Position, proximity, current, and rotation sensing |
📌 Applications
- Position and angle measurement
- Proximity and distance detection
- Rotational speed and direction sensing
- Arduino, STM32, Raspberry Pi projects
- Brushless motor feedback and current sensing
- Industrial and consumer automation
💡 Why Choose This Product?
The SS49E Analog Hall Sensor is a versatile and affordable magnetic sensing solution. With excellent linearity, compact packaging, and wide voltage support, it’s ideal for everything from educational kits to professional control systems. Its analog output makes it compatible with any ADC-enabled microcontroller for accurate magnetic field measurements.
📦 Package Includes
- 1 × SS49E Analog Hall Sensor
