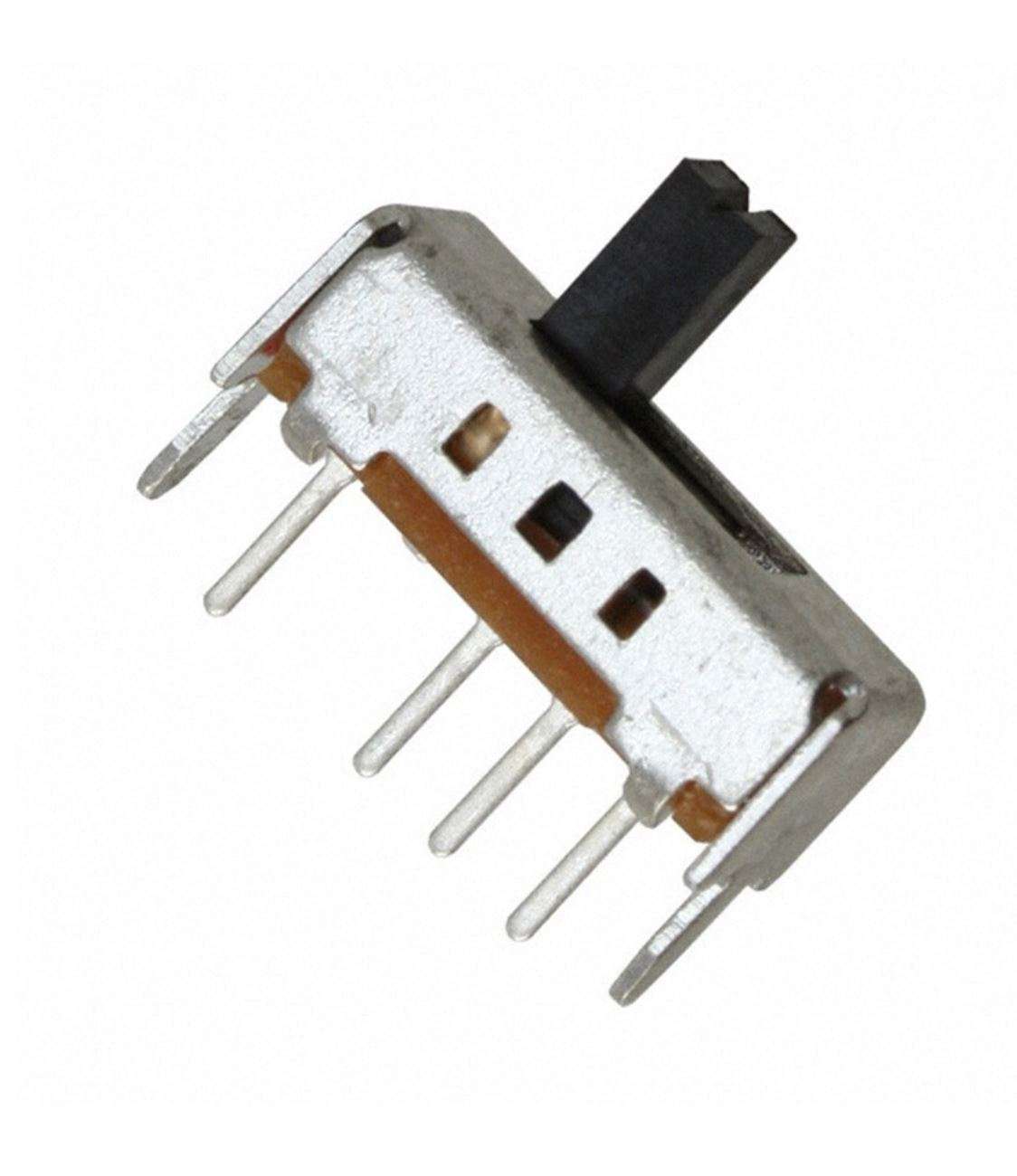

SS-13D01 Slide Switch – 1P3T Mini Toggle Switch

The SS-13D01 Slide Switch – 1P3T Mini Toggle Switch is a compact and versatile switch ideal for electronic projects requiring multi-position control. With its single-pole, triple-throw (1P3T) design, this slide switch allows selection between three different outputs or modes, making it perfect for DIY circuits, prototyping, and embedded systems.

Key Features:

• 1P3T Configuration: Single-pole, triple-throw switch for selecting between 3 states.
• Compact Size: Space-saving mini form factor suited for compact PCB layouts.
• Slide Action: Smooth and tactile slide movement for reliable switching.
• Easy PCB Mounting: Designed for through-hole mounting for stable connection.
• Durable Build: Engineered for long service life and consistent performance.

Technical Specifications:

• Model: SS-13D01
• Type: Slide Switch
• Configuration: 1P3T (Single Pole, Triple Throw)
• Current Rating: 0.5A at 50V DC
• Contact Resistance: ?30m?
• Insulation Resistance: ?100M?
• Mounting: Through-hole (DIP)
• Size: Approx. 13mm body length

Applications:

• Mode Selection: Ideal for switching between different modes or circuits.
• Prototyping Boards: Great for breadboards and PCB designs.
• DIY Electronics: Perfect for Arduino, robotics, and embedded systems.

Why Choose SS-13D01 Slide Switch?

The SS-13D01 1P3T Slide Switch is perfect for applications requiring reliable multi-position control in a small footprint. Whether you’re building a custom control panel or a simple circuit switch, this toggle switch offers dependable performance and easy integration.
