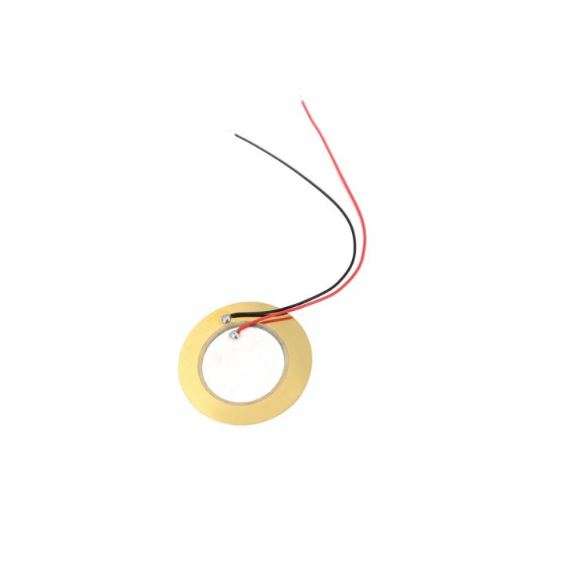

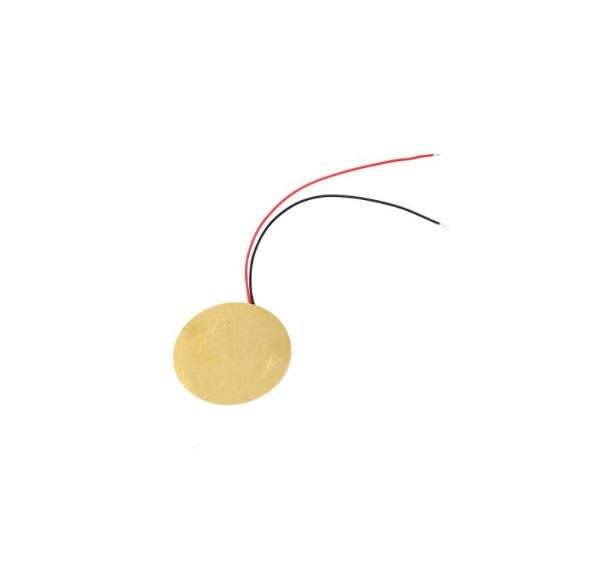

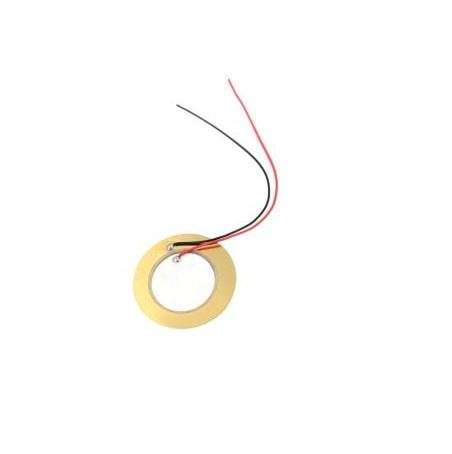

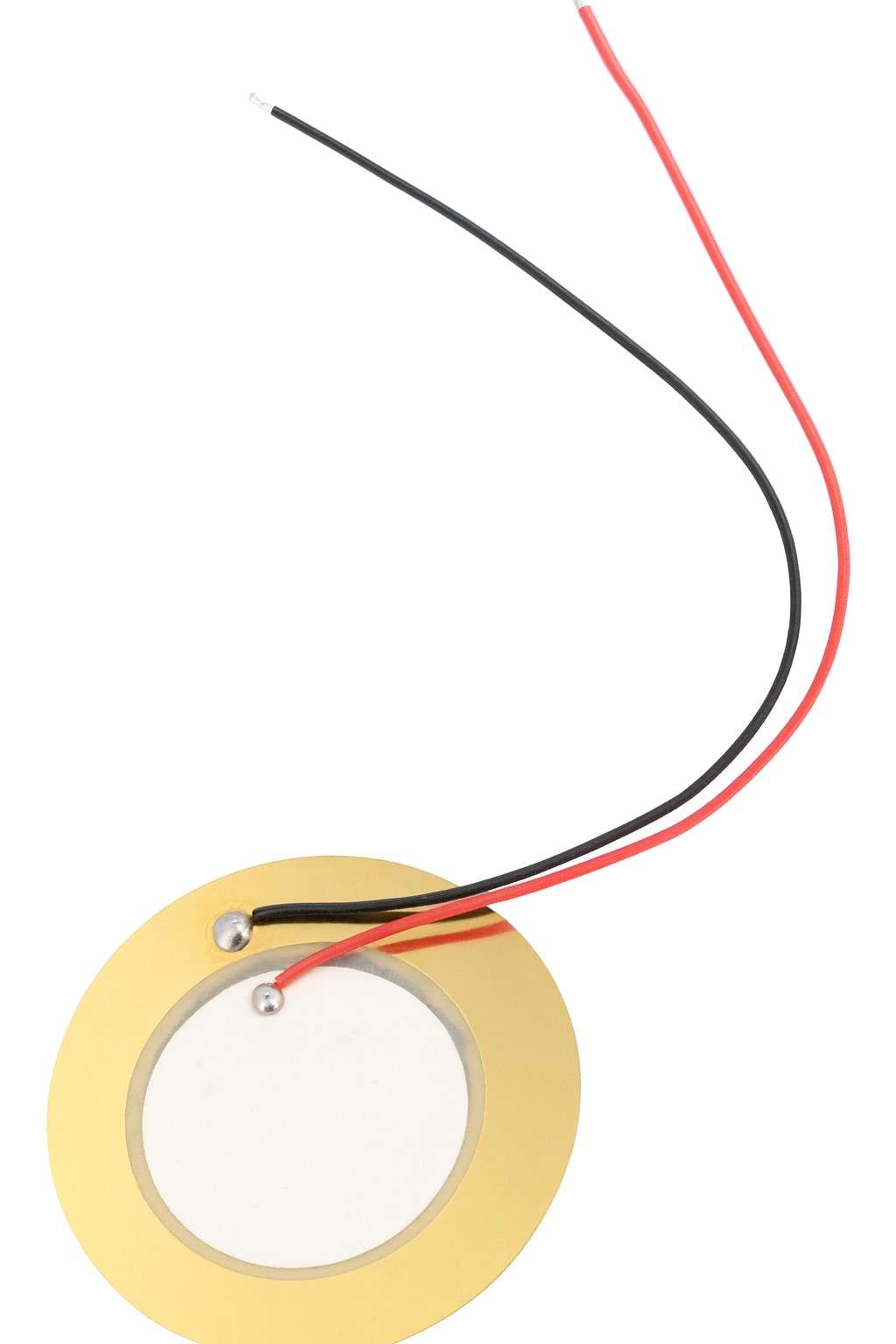

The Piezo Buzzer 10mm with Cable is a reliable, compact electronic sounder designed for projects requiring loud audio alerts in limited space. With its pre-wired leads and standard round form, this buzzer is ideal for a variety of embedded applications, including DIY electronics, Arduino-based systems, alarm modules, and toys.
This buzzer operates across a wide DC voltage range of 3V to 12V and produces a loud ~90 dB tone at 12V. The included pre-attached red and black wires simplify installation in prototyping boards or finished enclosures. Whether you’re adding sound feedback to a circuit or building an alert system, the Piezo Buzzer 10mm with Cable offers excellent performance and flexibility.
🔧 Key Features
- 10mm diameter piezoelectric buzzer with leads
- Operates from 3V to 12V DC
- High sound output of ~90 dB at 12V
- Comes with pre-soldered cable (~10cm)
- Low current draw for battery efficiency
- Ideal for Arduino, toys, alarms, and more
📐 Technical Specifications
| Product Name | Piezo Buzzer 10mm with Cable |
| Type | Piezoelectric Buzzer |
| Diameter | 10mm |
| Voltage Range | 3V – 12V DC |
| Sound Pressure Level | ~90 dB @ 12V |
| Cable Length | Approximately 10cm |
| Mounting Type | PCB Mount or Panel Mount |
| Material | Metal & Piezoelectric Ceramic |
| Color | Black casing with red/black wires |
| Weight | ~1g |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Current Consumption | Typically <20mA |
| Use Case | Toys, alarms, Arduino circuits, electronics |
📌 Applications
- Arduino and microcontroller projects
- Sound alerts in battery-powered devices
- Toy sound modules and feedback systems
- Miniature alarm systems
- DIY kits, sensors, and electronics prototyping
💡 Why Choose This Product?
The Piezo Buzzer 10mm with Cable offers loud sound output in a minimal footprint. Its easy-to-use wire leads and wide voltage range make it perfect for beginners and engineers alike in various sound-producing circuits.
📦 Package Includes
- 1 × 10mm Piezo Buzzer with Cable
