The PICKit2 PICKit3 Universal Adapter is a compact and reliable programming board designed for use with Microchip’s PICKit2, PICKit3, and ICD2 programmers. This adapter supports a wide range of PIC microcontrollers, offering a simple and efficient way to develop, test, and debug embedded systems.
It features a plug-and-play design with clear pin labeling, allowing for hassle-free connections. Whether you are working on prototyping or production environments, this adapter board helps streamline the programming process and ensures stable communication with your target MCU.
🔧 Key Features
- Universal programming adapter for PICKit2, PICKit3, and ICD2
- Supports a wide variety of PIC microcontrollers
- Compact design for easy handling and integration
- Reliable and stable programming connections

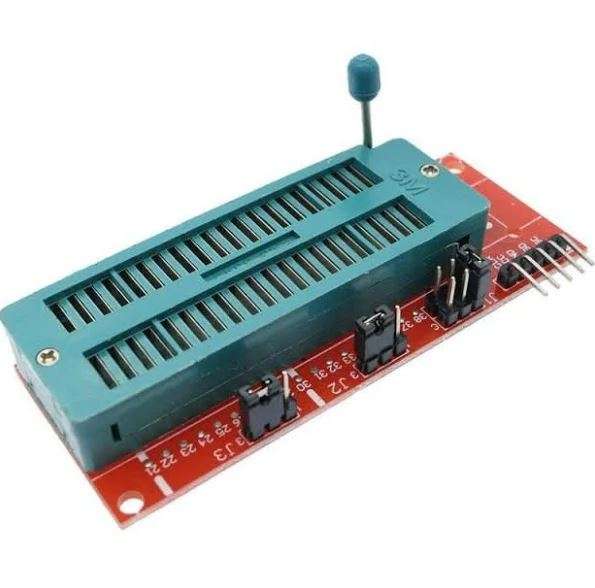

- Plug-and-play design with onboard ZIF socket (in some models)
- Ideal for development, debugging, and testing workflows
📐 Technical Specifications
| Product Name | PICKit2 PICKit3 Universal Adapter |
| Compatible Programmers | PICKit2, PICKit3, ICD2 |
| Supported Devices | Various PIC microcontrollers (8-bit, 16-bit series) |
| Interface | ICSP (In-Circuit Serial Programming) |
| Connection Type | 6-pin header (RJ11 or standard ICSP layout) |

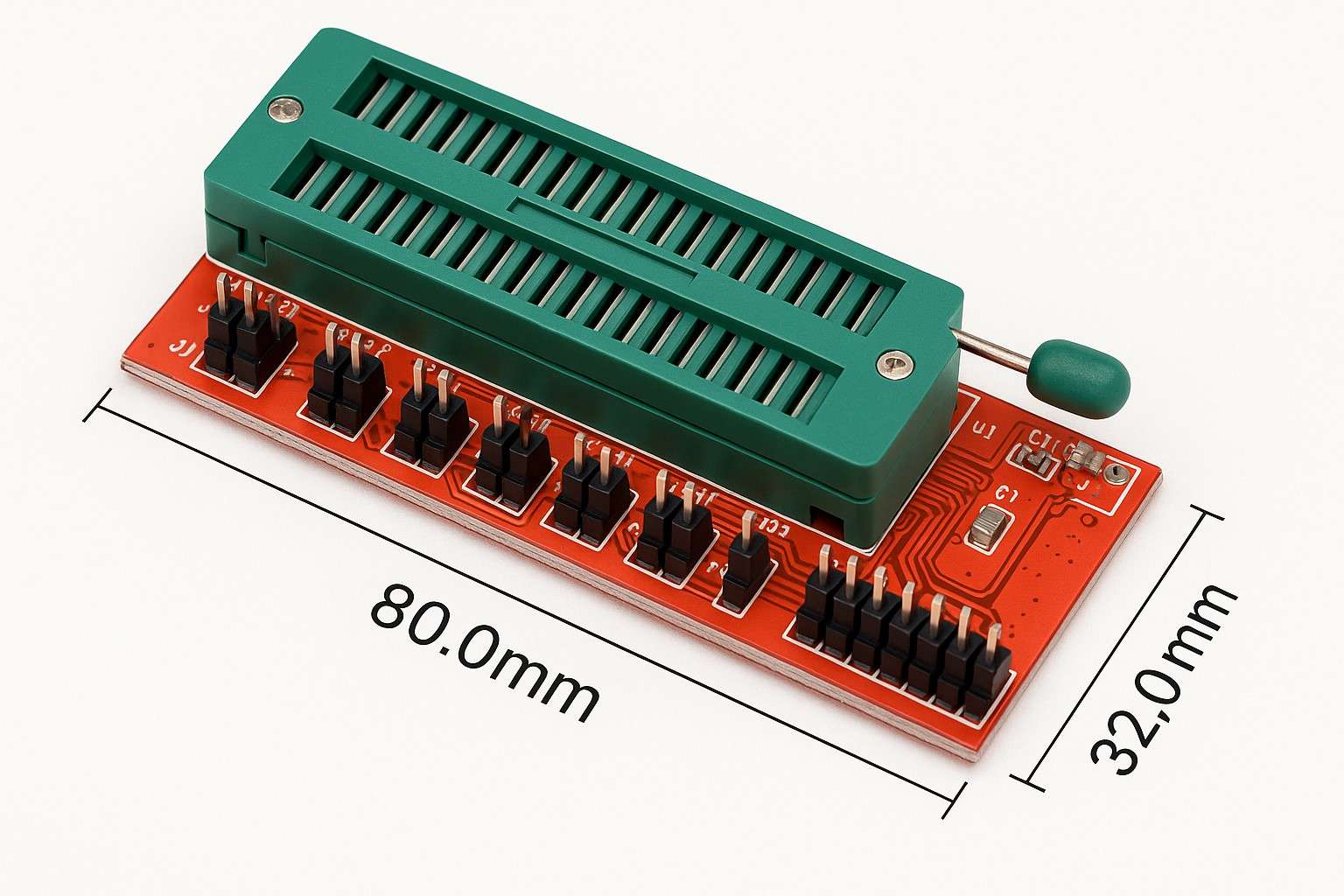

| Dimensions | Compact board (varies slightly by model) |
| Board Material | High-quality FR4 PCB |
📌 Applications
- Programming and testing PIC microcontrollers
- Debugging embedded systems with PICKit tools
- Educational use in electronics labs
- Firmware development and prototyping
💡 Why Choose This Adapter?
The PICKit2 PICKit3 Universal Adapter eliminates the need for custom wiring and speeds up the development cycle. Whether you’re a hobbyist or a professional engineer, this board simplifies your PIC programming workflow and ensures consistent results with every flash.
📦 Package Includes
- 1 × PICKit2/PICKit3 Universal Programming Adapter Board
