Mini USB-B Through Hole Connector – Right Angle (4-Leg Design)

Mini USB-B Connector Right Angle – Compact and Reliable for PCB Mounting

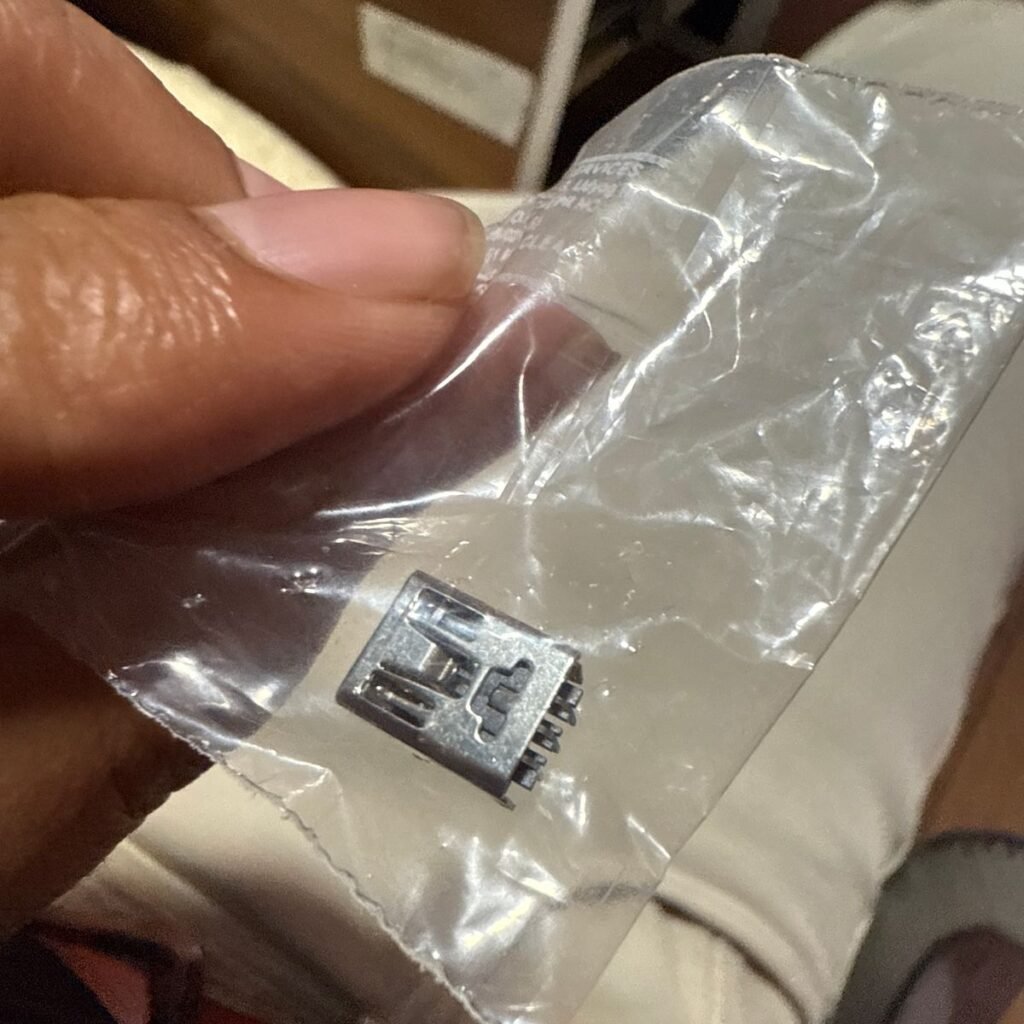

Mini USB-B connector Right angle is the perfect choice for compact circuit board designs that require a secure and stable USB interface. Designed with a 4-leg through-hole mount, this right-angle connector is fully compliant with USB 2.0 specifications and supports data transfer rates of up to 480 Mbps. Ideal for embedded systems, handheld devices, and custom electronics, this connector offers dependable performance and long-term durability.

Key Features of Mini USB-B Connector Right Angle

• Supports USB 2.0 data transfer speeds up to 480 Mbps

• Right angle design for horizontal mounting in tight spaces

• 4-leg through-hole construction for strong mechanical stability

• Compatible with USB 1.1 and USB 2.0 Mini-B cables

• Durable connector rated for over 1,000 mating cycles

Technical Specifications

• Product Type: Mini USB-B connector Right angle

• Interface Standard: USB 2.0

• Mounting Style: Through-hole (4-leg design)

• Connector Orientation: 90° Right Angle

• Pin Count: 5-pin configuration

• Contact Material: Gold flash for signal reliability and corrosion resistance

• Shielding: Metal shell for EMI/RFI protection

• Voltage Rating: 5V (standard USB)

• Temperature Range: -25°C to +85°C

• RoHS Compliant: Yes

Applications

• Embedded electronics and development boards

• Portable and handheld electronic devices

• Industrial equipment with mini USB ports

• USB-powered sensors and modules

• DIY electronics and repair projects

Why Choose This Mini USB-B Connector Right Angle?

The Mini USB-B connector Right angle design provides a low-profile, space-efficient solution for modern electronics. With strong mechanical support from its 4-leg mount and compatibility with standard USB Mini-B cables, it ensures long-term reliability even under frequent use. Whether you’re prototyping or repairing, this connector is engineered for performance, strength, and precision.

Package Includes

• 1 x Mini USB-B Connector Right Angle – Through Hole (4-Leg Design)
