JST-SM 2 Pin Connector is a pre-wired male-female connector pair designed for quick and secure electrical connections in batteries, LED strips, electronic modules, DIY projects, and other low-voltage applications. The connector provides a convenient plug-and-play solution without requiring additional crimping or connector assembly.
This JST-SM 2 Pin Connector set comes with a 10cm pre-attached wire, making it suitable for extending, connecting, or replacing wiring in electronic projects. The polarized design helps ensure correct connection orientation, while the locking mechanism provides a secure connection and helps prevent accidental disconnection during use.
🔧 Key Features
- Pre-wired JST-SM 2 Pin Connector male-female pair
- 10cm wire length for convenient installation
- Polarized design helps prevent incorrect connection
- Locking mechanism helps prevent accidental disconnection
- Compact connector design for space-constrained applications
- Pre-attached wires allow quick and easy installation
- Suitable for batteries, LED strips, electronics and DIY projects

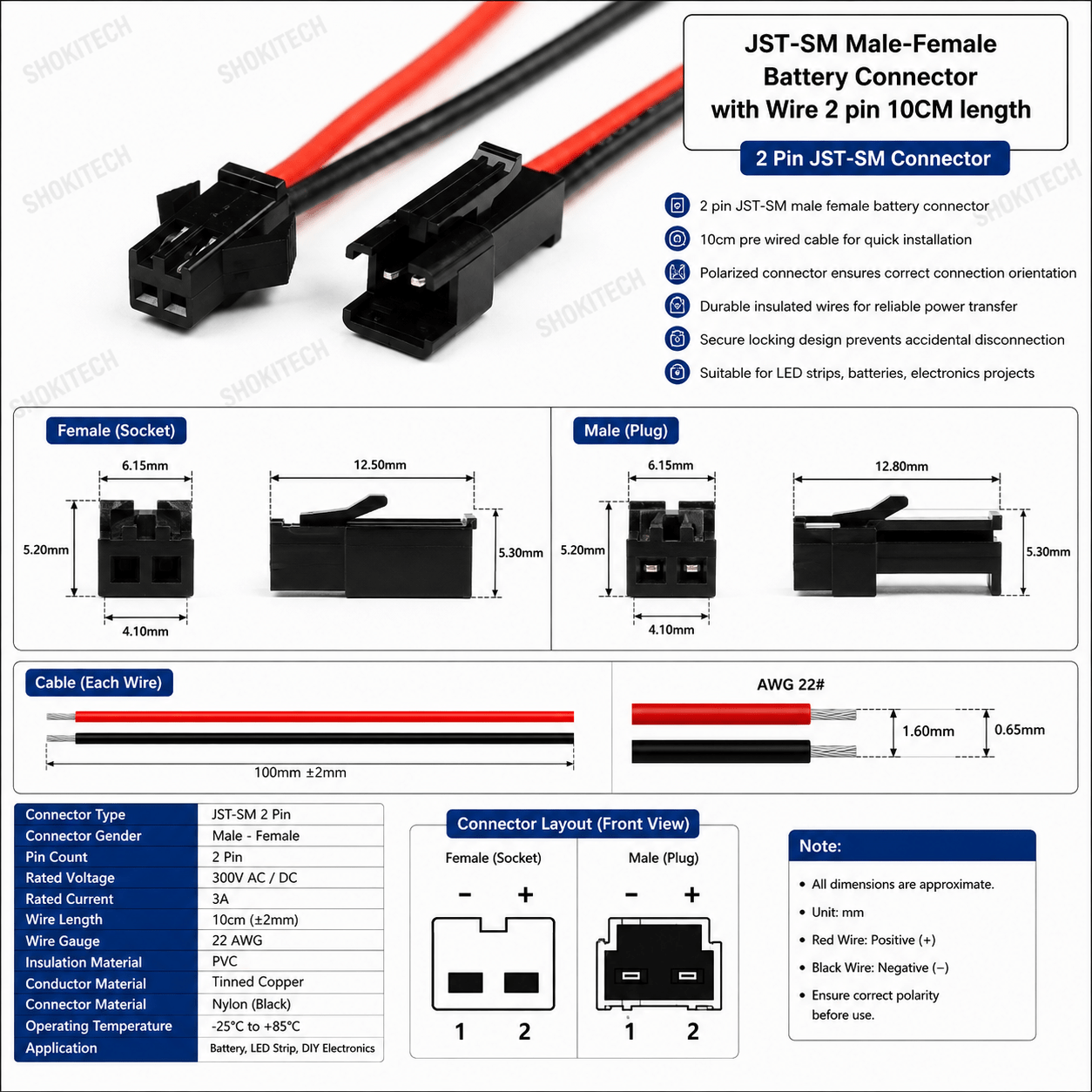

📐 Technical Specifications
| Specification | Details |
|---|---|
| Connector Type | JST-SM 2 Pin Connector |
| Pins | 2 Pin |
| Pitch | 2.5 mm |
| Connector | Male + Female |
| Wire Length | 10 cm (100 mm) |
| Current Rating | 3 A max.* |
| Voltage Rating | 250 V max.* |
| Wire Compatibility | AWG 28–22* |
| Operating Temperature | −25°C to +85°C* |
| Polarity | Red = Positive (+), Black = Negative (−) |
* Electrical ratings may vary depending on the wire gauge, connector condition, operating environment, and application. Use within appropriate electrical safety limits.
📌 Applications
- Battery and power connections
- LED strips and LED lighting projects
- Arduino and electronic projects
- DIY electrical and electronics assemblies
- DC power connections
- Electronic modules and control circuits
- Wire extension and connector replacement applications
💡 Why Choose This Product?
The JST-SM 2 Pin Connector provides a simple and reliable way to create detachable electrical connections without complicated wiring or connector assembly. Its pre-wired 10cm cable, polarized design, and locking mechanism make it convenient for batteries, LED strips, electronic modules, and DIY projects where quick and secure connections are required.
📦 Package Includes
- 1 × JST-SM 2 Pin Male Connector with 10cm Wire
- 1 × JST-SM 2 Pin Female Connector with 10cm Wire
