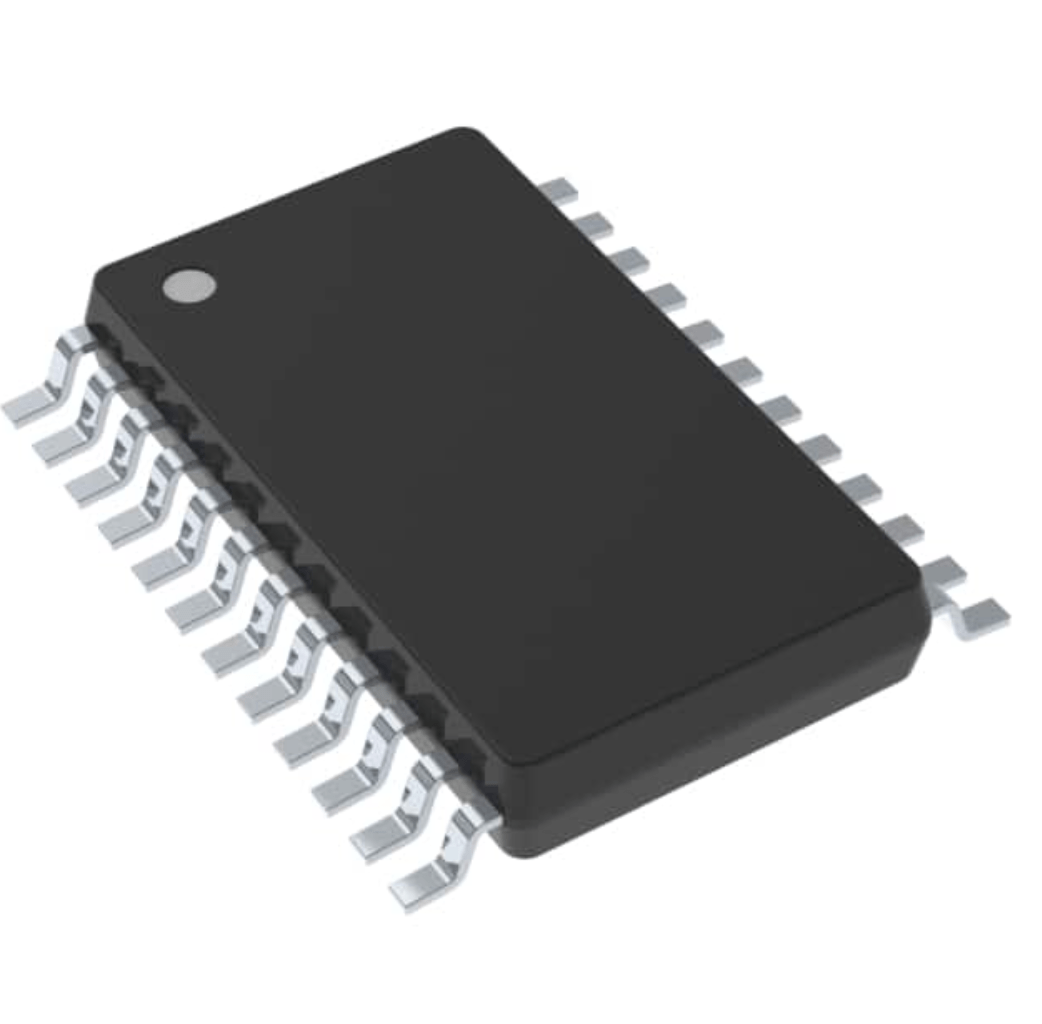

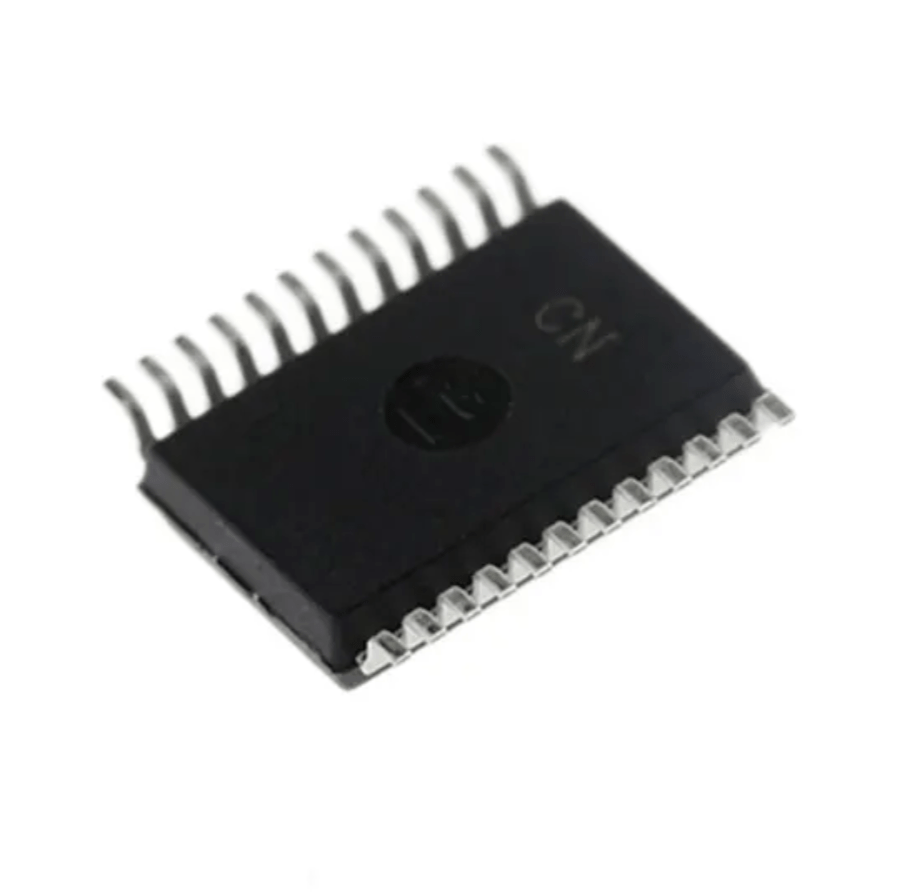

CS5460A-BSZ Power Measurement IC – Energy Monitoring, 24-Bit ADC, SPI Interface

The CS5460A-BSZ Single Phase Meter IC is a highly integrated power measurement solution, designed specifically for single-phase energy monitoring applications. This chip includes a delta-sigma analog-to-digital converter (ADC), a digital signal processor (DSP), and a serial interface. With low power consumption and precise analog input handling, it’s ideal for compact and energy-efficient metering designs.

The CS5460A-BSZ allows engineers and designers to implement accurate and reliable measurement functions in energy meters, smart home devices, or industrial monitoring systems. Its onboard ADC enables accurate voltage and current sampling, while the integrated DSP performs real-time calculations of active power, voltage RMS, current RMS, and energy.

🔧 Key Features

• Highly accurate energy measurement IC
• Includes ADC, DSP, and serial communication interface
• Low power consumption (only 2.9mA)
• Ideal for single-phase energy metering applications
• Wide operating temperature range for industrial use

📐 Technical Specifications

📌 Applications

• Single-phase digital energy meters
• Smart home energy monitoring
• Plug-load energy meters
• Industrial energy measurement
• DIY energy metering and power analysis systems

💡 Why Choose CS5460A-BSZ?

Engineered for accurate energy measurement in single-phase systems, the CS5460A-BSZ combines analog conversion and digital signal processing in one compact IC. It’s a top choice for designers requiring high accuracy, low power consumption, and a reliable solution for energy management.

📦 Package Includes

• 1 × CS5460A-BSZ Single Phase Meter IC
