F5305S MOSFET DC Switch Controlling Board – High Power Module
The F5305S MOSFET Switch Module is a high-efficiency DC load controller that allows you to switch
high-current devices using a small microcontroller signal. This module uses a powerful F5305S N-channel MOSFET,
providing excellent switching performance, low heat generation, and stable operation for automation and DIY electronics.
🔧 Key Features
- ⚡ High-power F5305S MOSFET for reliable switching
- 🔌 Supports 5V–36V DC loads
- 🤖 Compatible with Arduino, ESP8266, ESP32, Raspberry Pi
- 💡 Perfect for LEDs, motors, pumps & power control
- 📦 Screw terminal connectors for easy wiring
- 🛡 Built-in protection components for safe operation

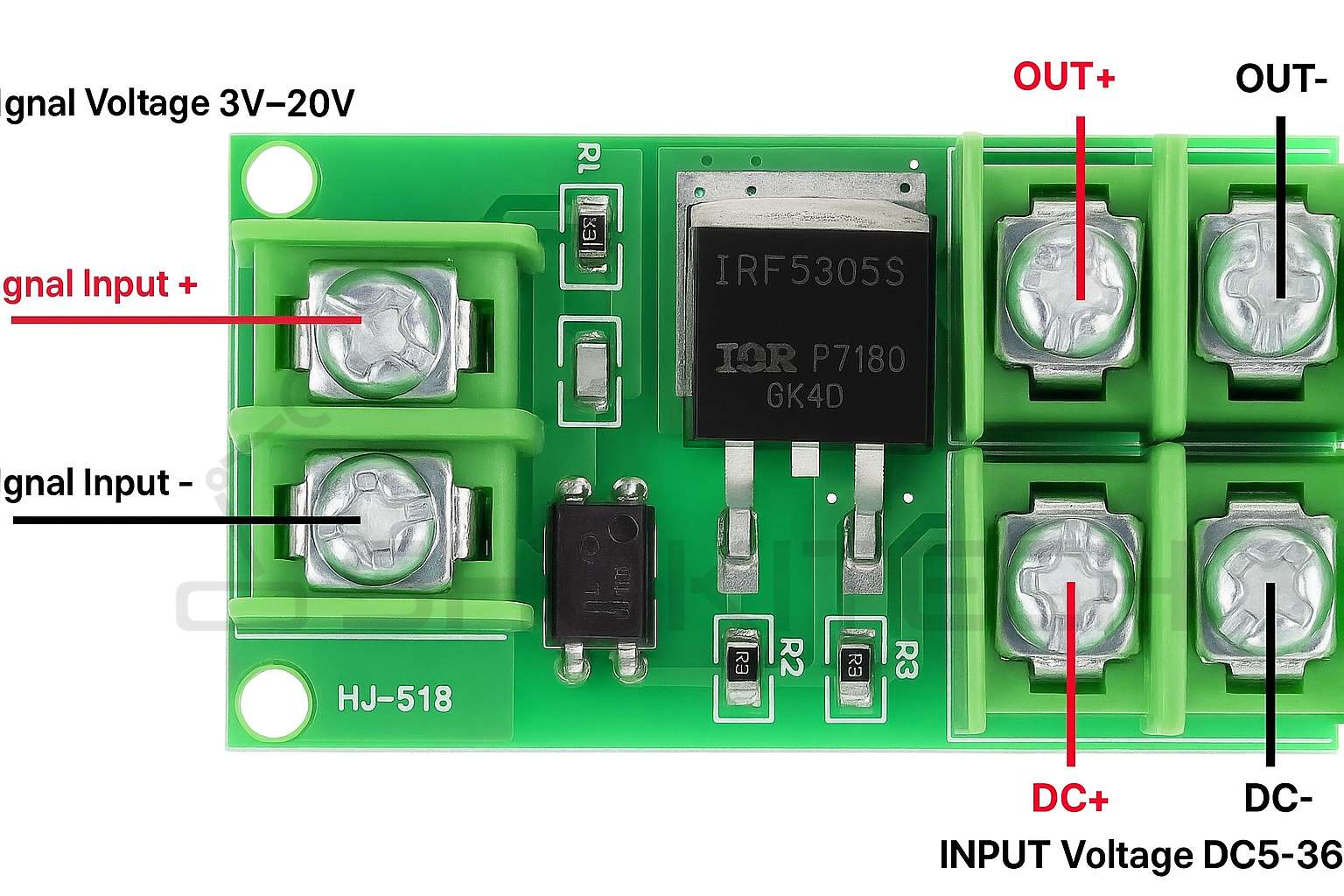

📐 Technical Specifications
| MOSFET Model | F5305S N-Channel |
| Load Voltage | 5V – 36V DC |
| Trigger Voltage | 3.3V – 5V logic compatible |
| Max Load Current | 15A (with proper heat dissipation) |
| Control Signal | Low-level PWM / digital signal |
| Connector Type | Screw terminals |
| Board Type | Single-channel MOSFET switching module |
| Protection | Flyback diode (for inductive loads) |
| Dimensions | Compact mini PCB |

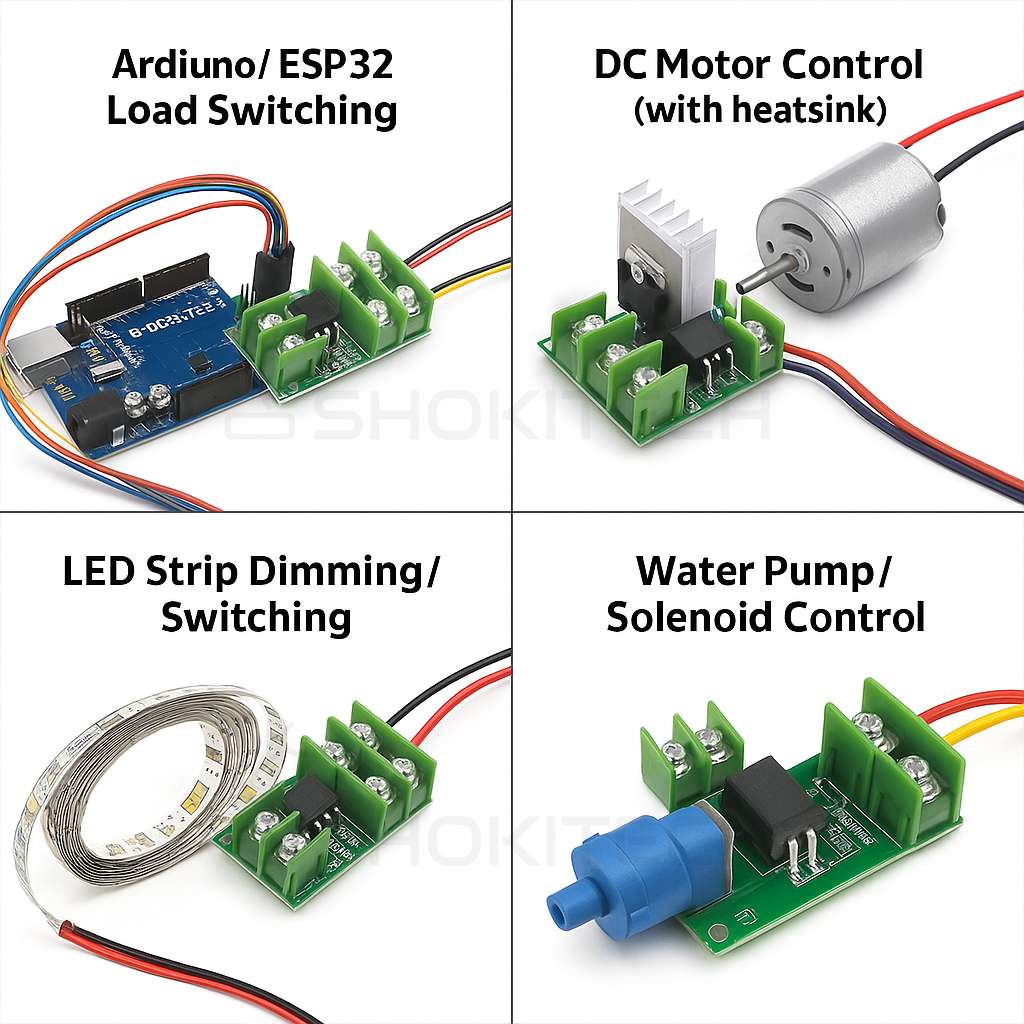

💡 Applications
- 💡 LED strip lighting control
- 🔋 DC motors & fans switching
- 🚰 Water pumps & solenoids
- 🤖 Arduino & IoT automation projects
- 🔧 High-current DC power systems
📦 Package Includes
- 1 × F5305S MOSFET DC Switch Control Board
Explore more electronic modules and
power control boards at Shokitech.
