Blue PBS-11B 12mm Push Button – 2-Pin Momentary Self-Reset Round Switch

The Blue PBS-11B 12mm Push Button is a compact and reliable momentary switch designed for control circuits, DIY electronics, and low-voltage applications. Featuring a smooth blue round cap and a 12mm mounting diameter, this button provides momentary self-reset action, meaning it returns to its original position after being released. It’s ideal for applications requiring temporary activation, such as start/reset functions.

Key Features

• Product Type: Blue PBS-11B 12mm Push Button

• Action Type: Momentary (Self-Reset)

• Contact Configuration: Normally Open (NO)

• Terminals: 2-pin solder-type connectors

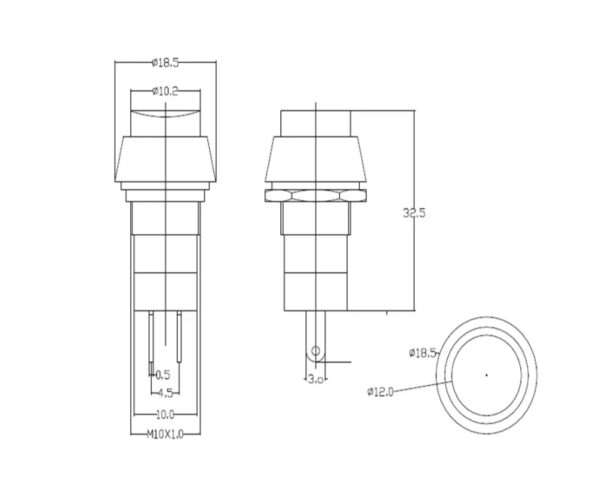

• Mounting Hole Size: 12mm

• Cap Shape: Round plastic cap

• Voltage Rating: Up to 250V AC / 1A

• Durability: Over 50,000 press cycles

• Material: Plastic actuator with metal base

Applications

The Blue PBS-11B 12mm Push Button is ideal for:

• DIY and hobby electronics

• Control panels and interfaces

• Arduino or Raspberry Pi projects

• Machine reset/start switches

• Access control systems

• Educational and prototype boards

Installation & Usage

Easily fits into standard 12mm panel holes and secures with a threaded nut. The 2-pin design allows for quick soldering or wire attachment. The momentary action ensures reliable input with immediate reset when released.

What’s Included

• 1 x Blue PBS-11B 12mm Push Button (Momentary, 2-Pin)
