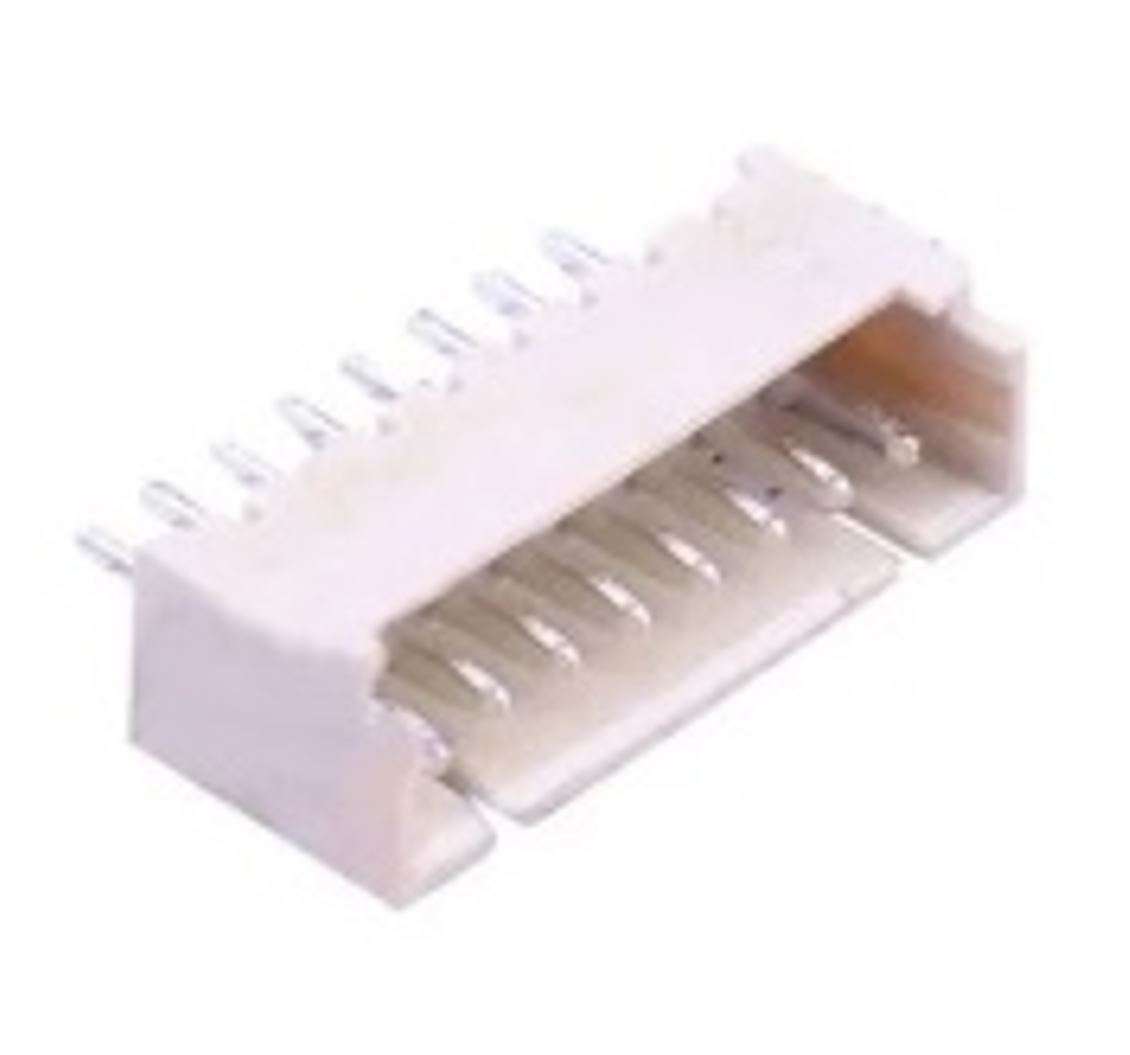

The A1251WV-10P-46-CJT-10 Pin 1.25mm 180° Wafer Male Connector is a compact wire-to-board connector designed for reliable PCB connections in electronic assemblies. Featuring a standard 1.25mm pitch and 180° horizontal mounting configuration, it provides secure electrical connectivity while maximizing PCB space efficiency.
Manufactured with high-quality copper alloy contacts and a durable thermoplastic housing, this connector delivers stable signal transmission and long-term performance. It is widely used in consumer electronics, battery management systems, industrial controls, communication equipment, and embedded electronic applications.
Key Features
- 10-pin wafer male connector configuration
- Standard 1.25mm pitch spacing
- 180° horizontal PCB mounting design
- Reliable wire-to-board connectivity
- Compact footprint for dense PCB layouts
- Durable heat-resistant insulating housing
Technical Specifications
| Product Name | A1251WV-10P-46-CJT-10 Pin 1.25mm 180° Wafer Male Connector |
| Connector Type | Wafer Male Connector |
| Number of Pins | 10 Pin |
| Pitch | 1.25mm |
| Mounting Angle | 180° Horizontal |
| Mounting Type | Through Hole |
| Contact Gender | Male |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Plating | Tin Plated |
| Current Rating | 1A Max |
| Voltage Rating | 125V AC/DC |
| Insulation Resistance | 1000MΩ Minimum |
| Operating Temperature | -25°C to +85°C |
| Application | Wire-to-Board PCB Connection |
Applications
- Consumer electronic devices
- Battery management systems
- Industrial control equipment
- Communication devices
- Embedded system development
- PCB interconnection assemblies
Benefits
- Space-saving PCB connector design
- Reliable electrical signal transmission
- Easy through-hole solder installation
- Suitable for high-density PCB layouts
- Long-lasting and durable construction
Package Contents
- A1251WV-10P-46-CJT-10 Pin 1.25mm 180° Wafer Male Connector (Quantity as per selection)
