The 41N Hall Effect Sensor is a unipolar digital magnetic sensor designed to detect the presence of a south-pole magnetic field. With fast switching capability and reliable performance, this sensor outputs a digital HIGH or LOW signal based on the detected field strength, offering a non-contact alternative for speed, proximity, and position sensing applications.

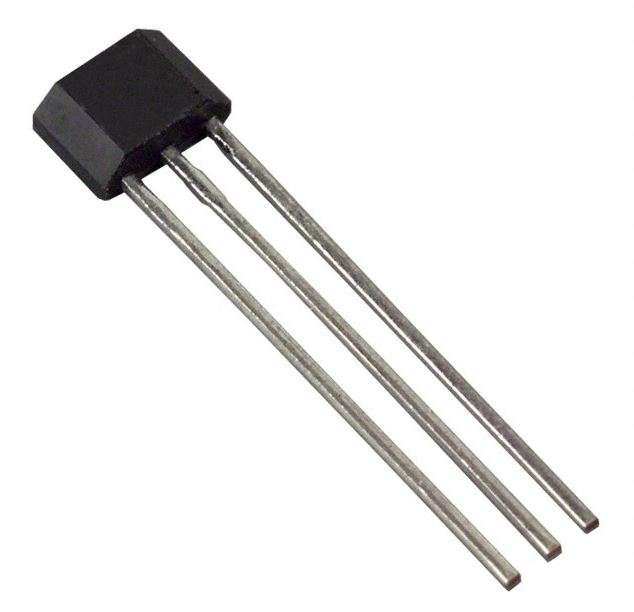

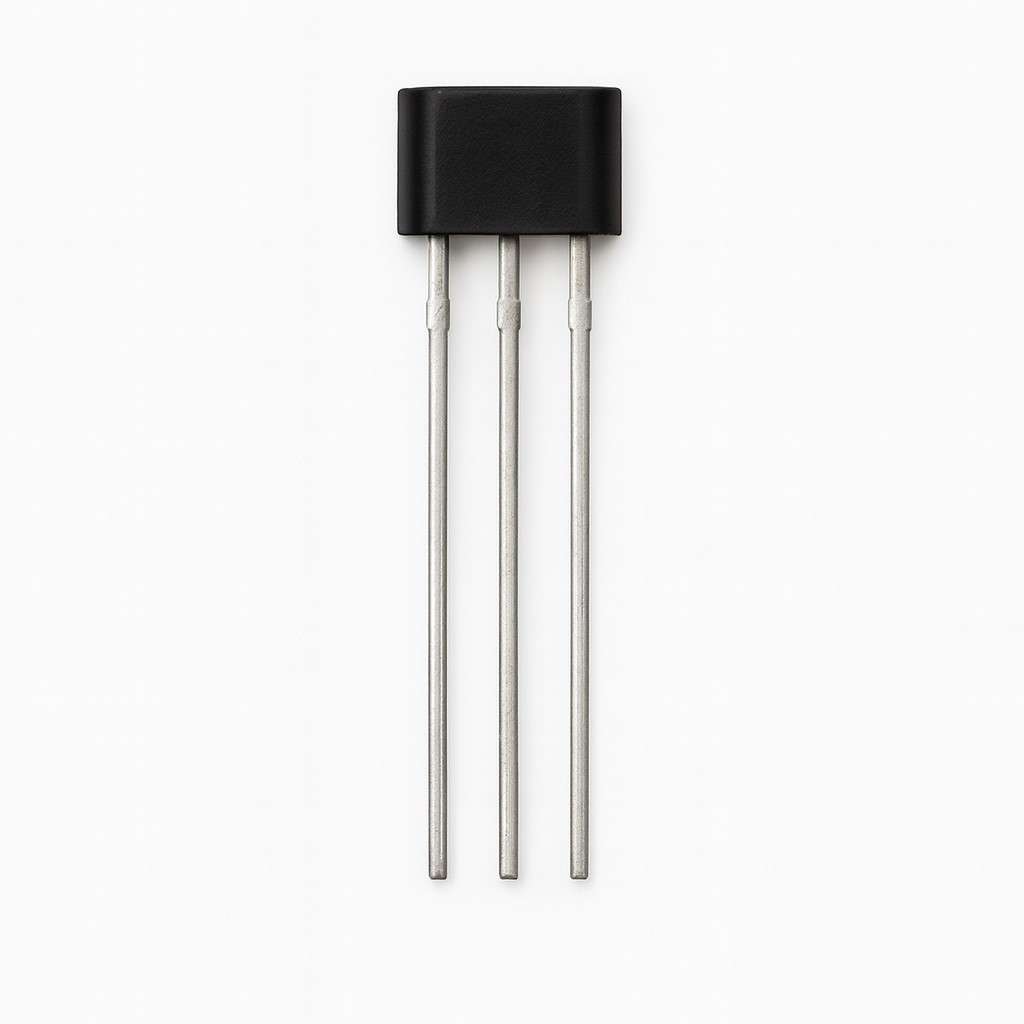

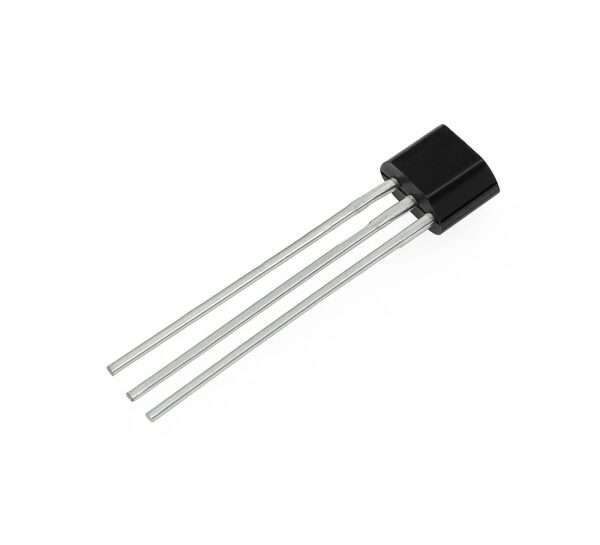

Packaged in a standard TO-92 through-hole case, the 41N sensor operates on a wide voltage range of 3.3V to 24V and is compatible with both microcontrollers and industrial logic circuits. Its low power consumption and fast response time make it ideal for brushless motor control, RPM monitoring, magnetic switches, and automation tasks.
🔧 Key Features
- Unipolar digital Hall effect sensor (detects south pole)
- Fast ON/OFF switching for digital output
- Wide operating voltage: 3.3V to 24V DC
- Response time ≤ 1 µs
- Compact TO-92 through-hole package
- Suitable for DIY, industrial, and automotive applications
📐 Technical Specifications
| Product Name | 41N Hall Effect Sensor |
| Sensor Type | Unipolar Digital Hall Sensor |
| Output Type | Digital (HIGH/LOW) |
| Operating Voltage | 3.3V to 24V DC |
| Operating Current | ~4mA (typical) |
| Response Time | ≤ 1 µs |
| Magnetic Sensitivity | South Pole (~35 Gauss typical) |
| Polarity | Unipolar (South Pole Only) |
| Package Type | TO-92 Plastic |
| Mounting Style | Through-Hole |
| Operating Temperature | -40°C to +125°C |
| Use Case | Speed sensing, magnetic switches, automation |
📌 Applications
- Brushless DC motor commutation
- Fan and wheel RPM sensing
- Gear rotation or shaft position detection
- Magnetic door and window sensors
- Robotics and automation proximity sensors
- DIY magnetic security and switch systems
💡 Why Choose This Product?
The 41N Hall Effect Sensor provides a fast, cost-effective, and reliable solution for detecting magnetic fields and motion without physical contact. It’s perfect for embedded electronics, automation systems, and magnetic switches where durability and precision matter.
📦 Package Includes
- 1 × 41N Hall Effect Sensor (TO-92 Package)
