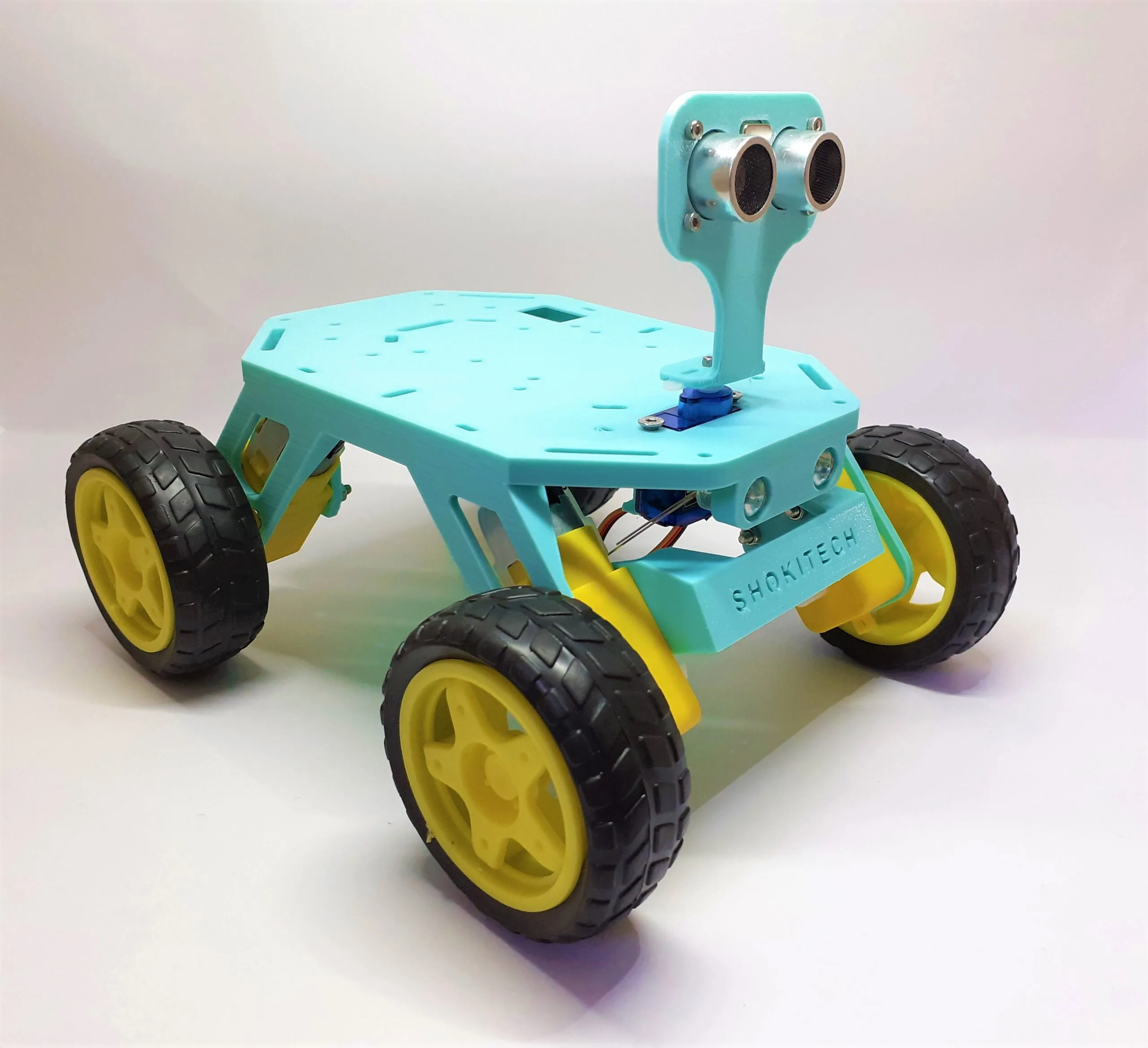

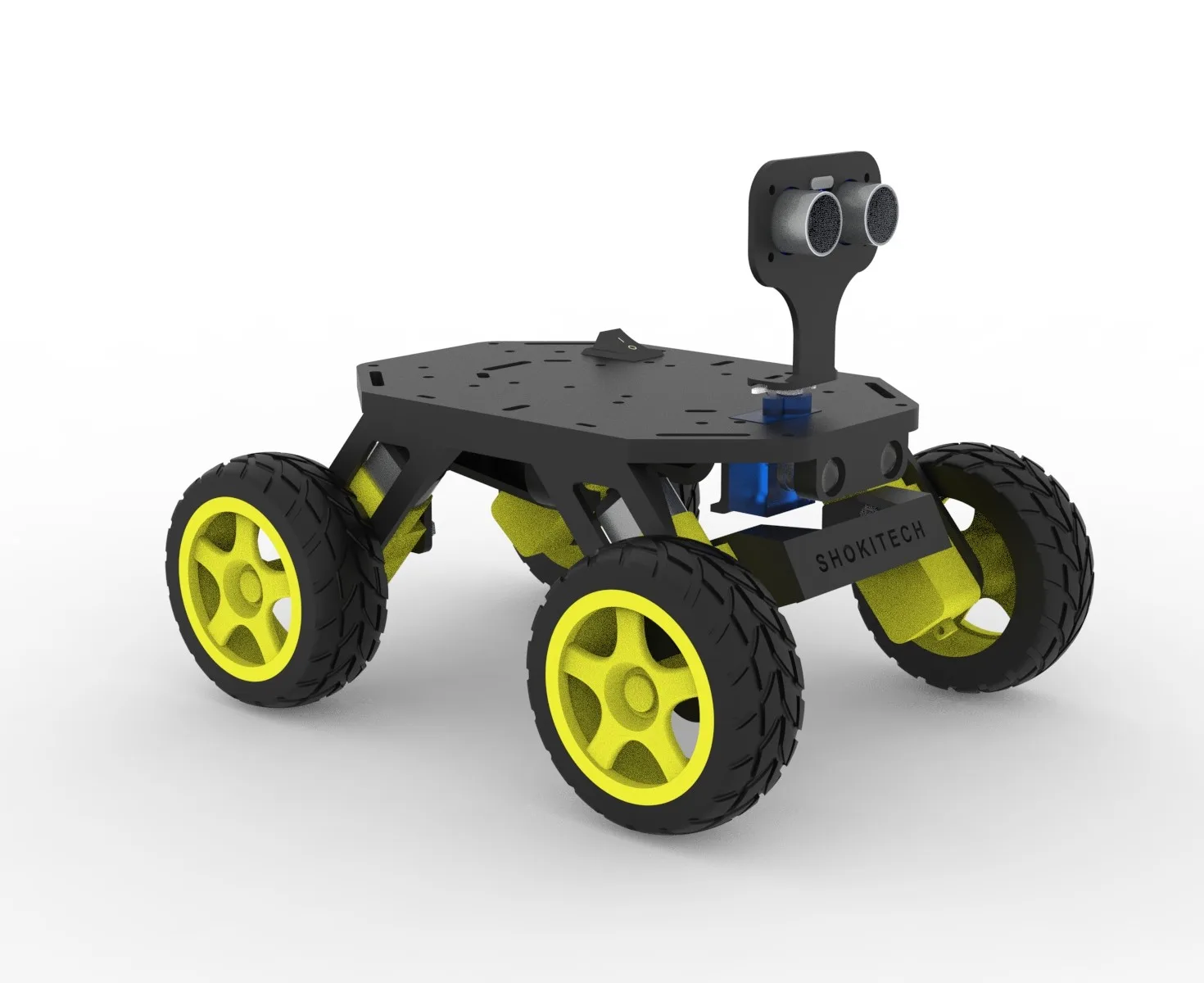

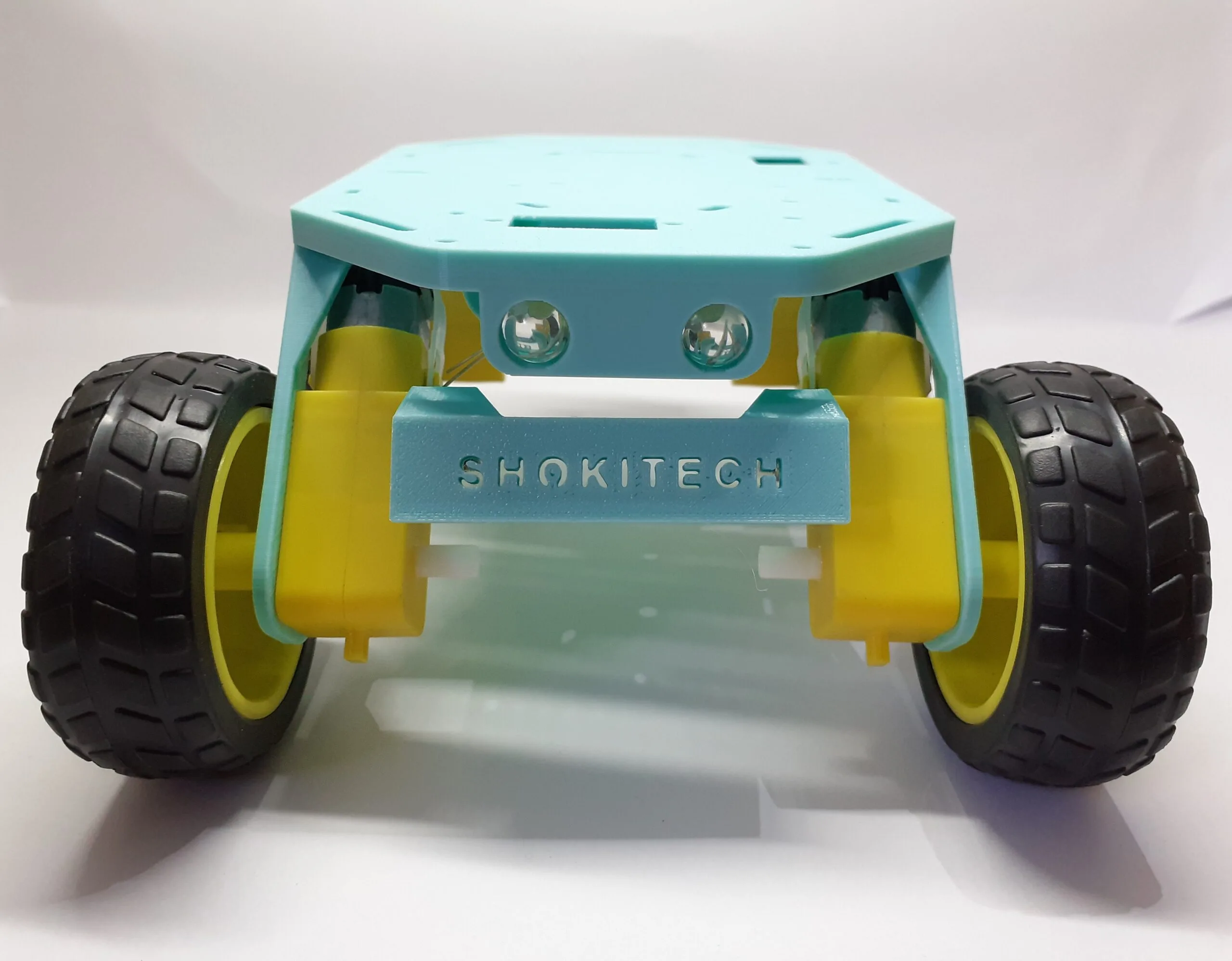

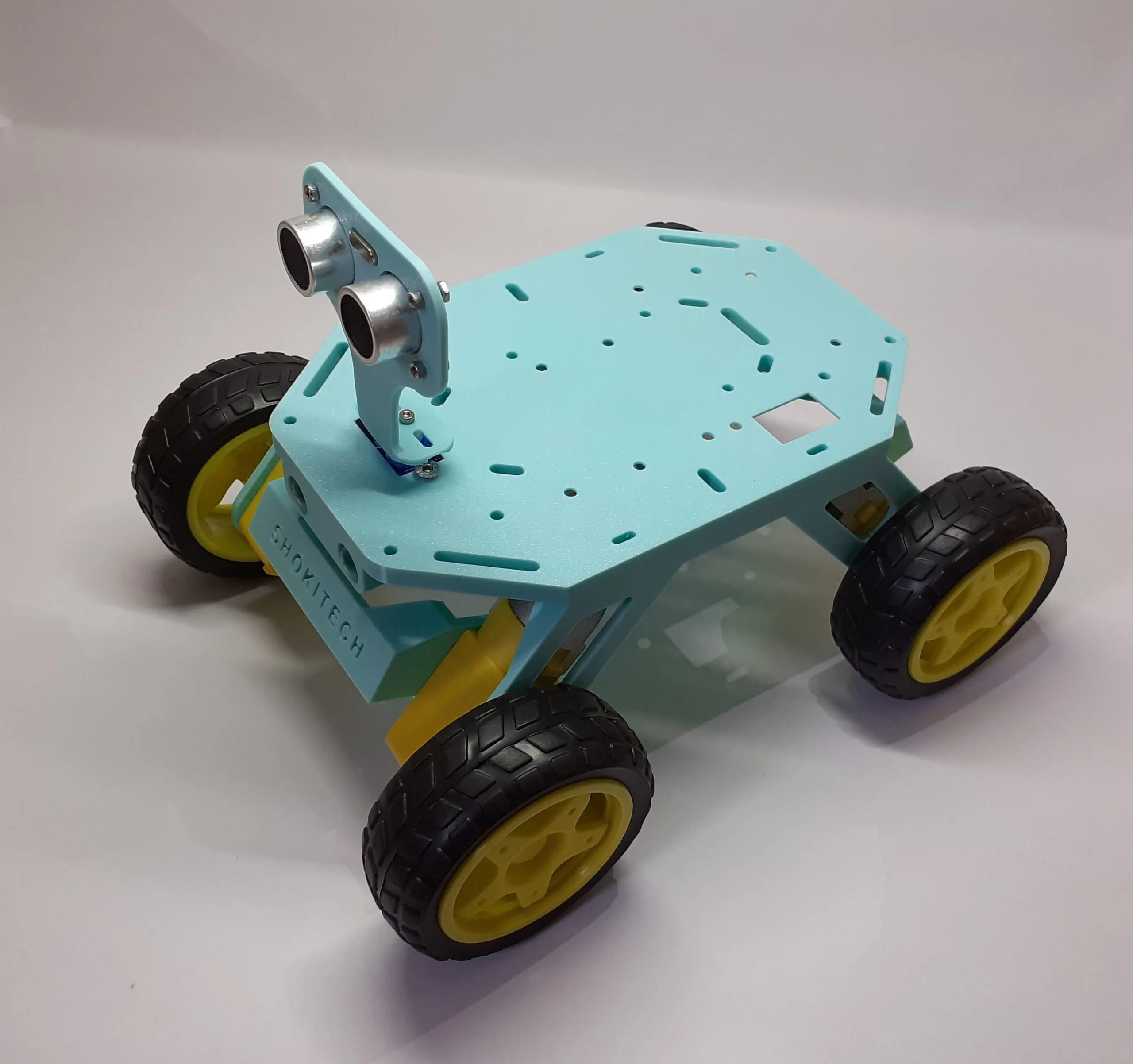

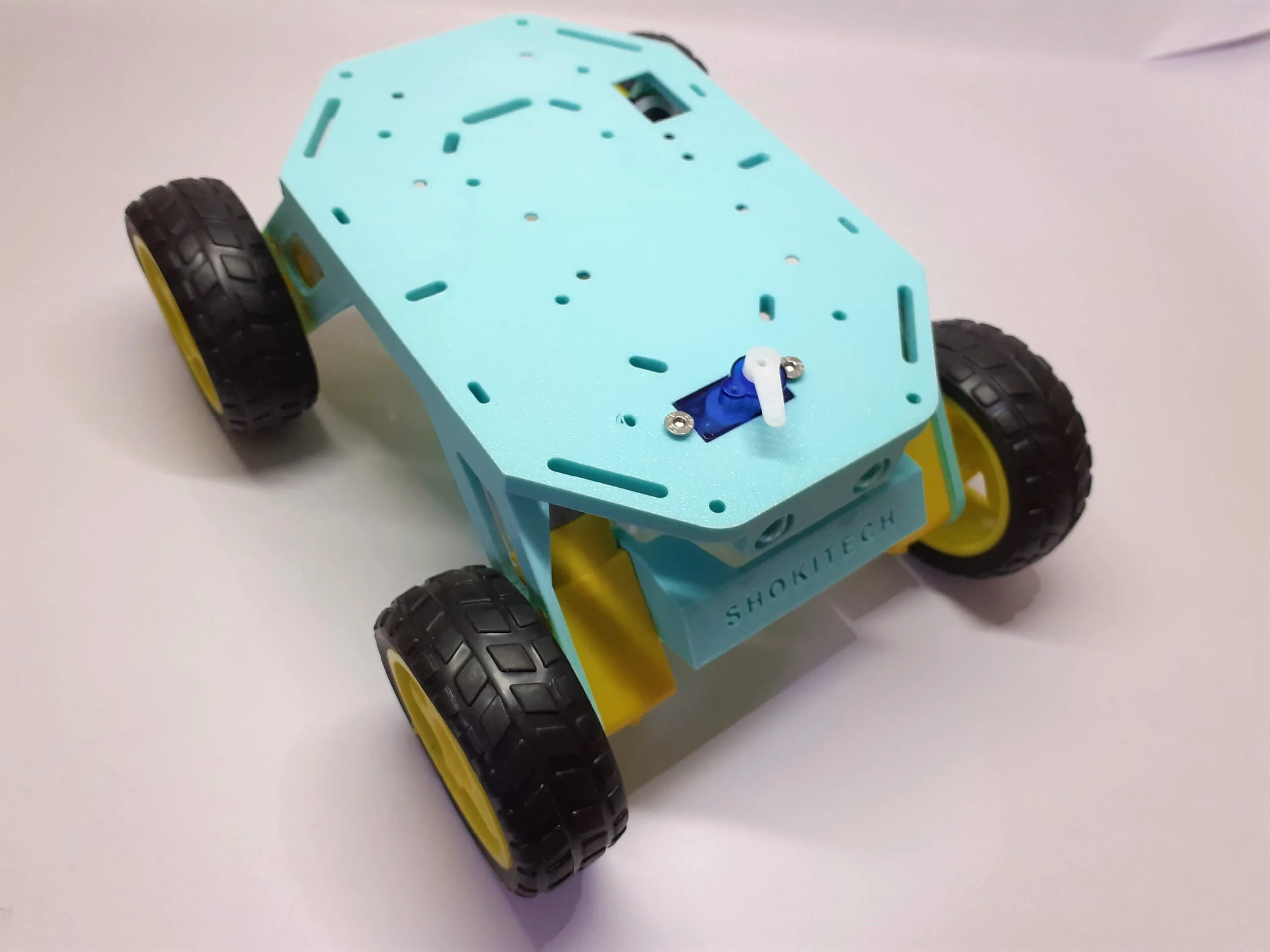

4-Wheel Chassis Robot

Original price was: ₹2,229.00.Current price is: ₹1,300.00. (Excl. GST 18%)

Add To Wishlist
Remove From Wishlist
  • Ideal for the DIY platform.
  • Attractive design.
  • Very handy and simple in assembling/disassembling.
  • Strong components to withstand extreme terrain conditions.
Guaranteed Safe Checkout
SKU: SHOKITECH-RD-P-A0002 Category: Tags: , ,

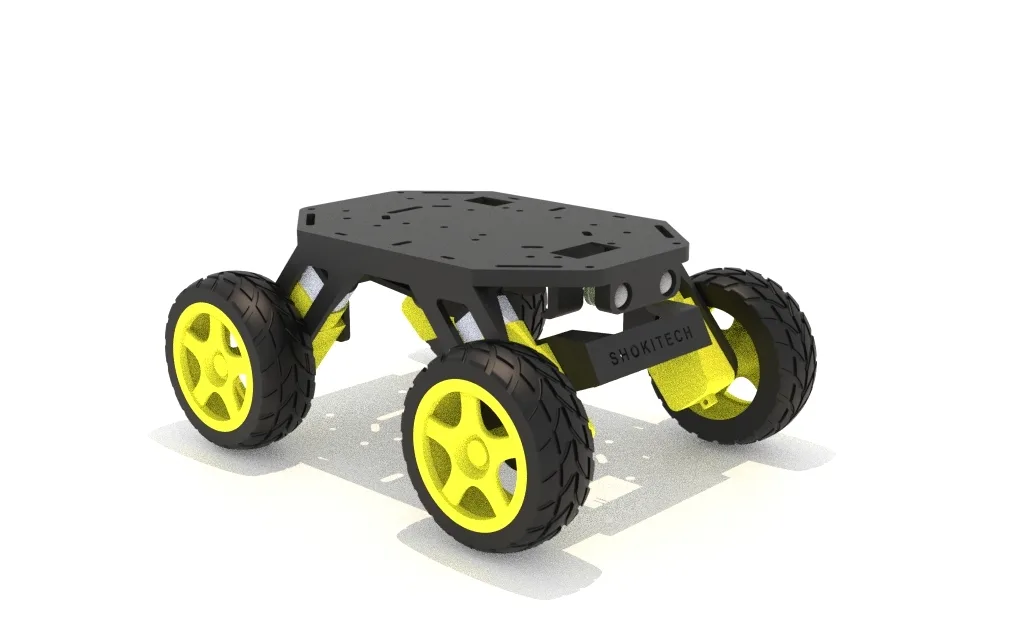

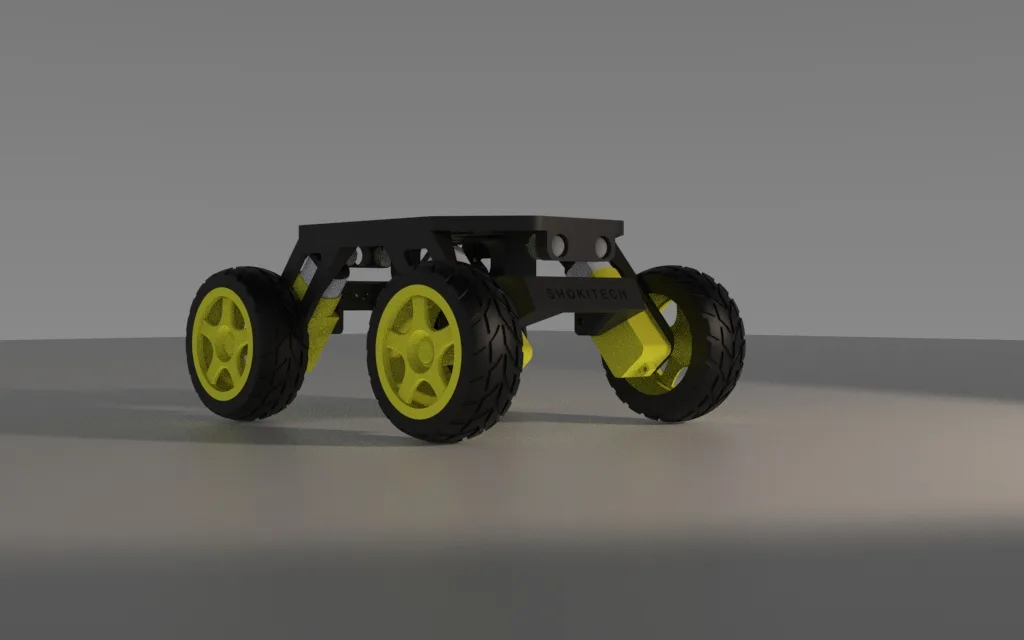

The chassis used in this kit is made of PLA material using 3d printing technology to create dynamic handling of the components mounted on your robotic vehicle. All the products included in this car kit are quality products.

Gear motor specs

  1. Operating Voltage: 3V~12V DC
  2. Load current: 170mA (when it is 4.5V)
  3. Size: 70 x 23 x 18 mm
  4. Weight:31g
  5. Shaft Length: 10 mm
  6. Shaft Type: 6 mm,

Double-D Wheel specs

  1. Loading Capacity: Max 5Kg
  2. Double D-hole For BO Motor: 6 mm
  3. Weight: 32g
  4. Wheel Diameter: 65 mm
  5. Wheel width: 27 mm
  6. Disc Material: Plastic (Yellow)
  7. Tyre Material: Rubber (Black)
Weight 0.39 kg

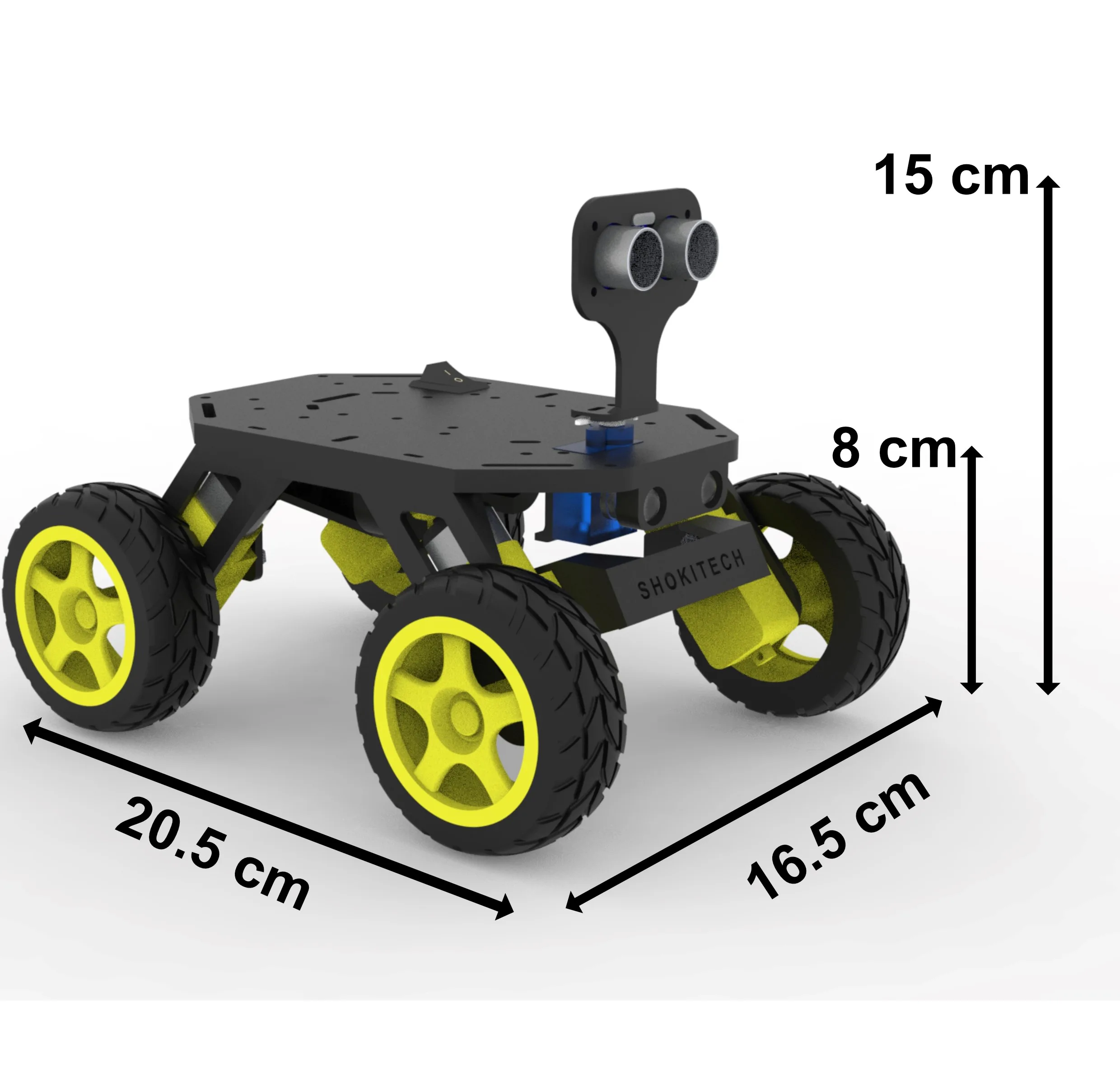

Dimensions 22 × 16 × 9 cm
SKU/Model Number

4-Wheel Chassis Robot
Category

Robotics
Material

Metal, Plastic
Color

Yellow
Input Voltage (V)

3 to 6
Output Voltage (V)

N/A
Current Rating (A)

0.2
Power Rating (W)

1.2
Frequency (MHz/GHz)

N/A
Communication Protocol

N/A
Interface Type

N/A
Number of Pins

N/A
Special Features

Pre-assembled robot platform
Compatible Boards

Arduino Uno, Nano
Compatible Voltage Range

3 to 6
Use Case

educational kits, robotics

Warranty

Enjoy Peace of Mind with Our 15-Day Warranty
All products sold by ShokiTech come with a 15-day warranty, which begins after the delivery of the product, ensuring your satisfaction with its quality and performance.

What Voids the Warranty
The warranty may be voided under certain conditions, including misuse, tampering, physical damage, or alterations to the product.
