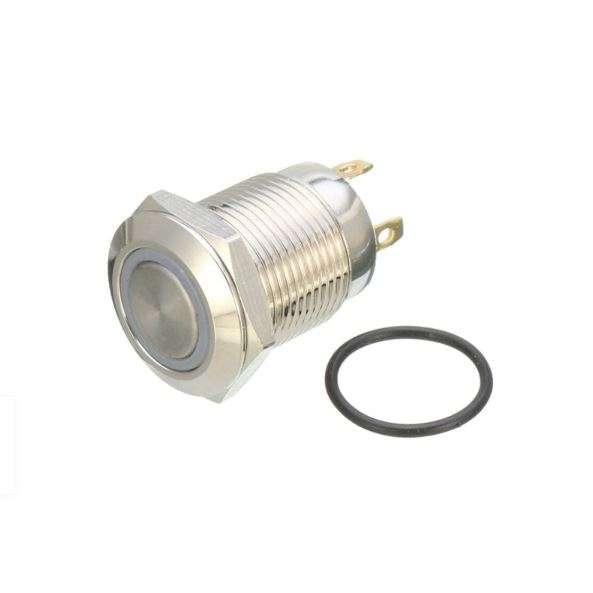

The 12mm 12V White Light Ring Push Button Switch is a premium self-locking switch designed for dashboards, control panels, and industrial applications. Featuring a flat metal body with an illuminated white LED ring, it provides both modern aesthetics and reliable switching performance.
Built with stainless steel housing, the 12mm 12V White Light Ring Push Button Switch is durable and resistant to dust and water, rated IP67 for harsh environments. Its self-locking (non-momentary) action means the switch remains in its ON or OFF position until pressed again, making it ideal for power toggling applications.
The 12mm 12V White Light Ring Push Button Switch supports up to 3A at 12 VDC with SPDT (1NO + 1NC) contacts, offering versatile wiring options. The integrated LED ring ensures bright daylight visibility, while independent LED terminals allow flexible circuit connections.
Compact and easy to mount with a 12 mm threaded cut-out and hex nut, the 12mm 12V White Light Ring Push Button Switch combines long life, waterproof protection, and a premium illuminated look for both DIY and professional projects.
🔧 Key Features
- Self-locking (non-momentary) push button for ON/OFF control
- White LED illumination ring for clear visual feedback
- Rated for 12 V DC systems, up to 3 A load
- SPDT contacts (1NO + 1NC) with reliable conductivity
- Stainless steel body with waterproof IP67 protection
- Compact 12 mm mounting hole size with threaded nut fixing
📐 Technical Specifications
| Product Type | Self-locking (non-momentary) push button switch |
| Mounting Hole | 12 mm diameter cut-out |
| Operating Voltage | 12 V DC |
| Current Rating | 3 A maximum |
| LED Illumination | White light ring |
| Contact Type | SPDT (1NO + 1NC) |
| Body Material | Stainless steel housing |
| Protection Rating | IP67 waterproof and dustproof |
| Total Length | 26 mm approx. |
| Quantity | 1 piece |
📌 Applications
- Automotive dashboards and control systems
- Industrial and laboratory panels
- Marine and outdoor electrical enclosures
- DIY electronics, Arduino, and Raspberry Pi projects
- Basic ON/OFF functions for appliances and equipment
💡 Why Choose This Product?
This switch offers reliable self-locking functionality, waterproof IP67 protection, and a stylish white LED illumination ring. It is an excellent choice for both professional installations and DIY electronics requiring long-term durability.
📦 Package Includes
- 1 × 12mm 12V White Light Ring Push Button Switch – Self-Locking Metal, Non-Momentary
